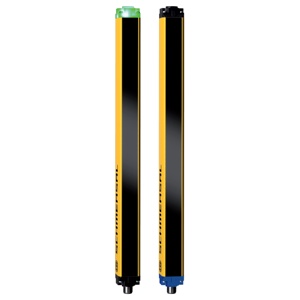

SLC440COM-ER-0650-35: 103004003 - Schmersal 22 Beams Safety Light Curtain
Technical Specifications of Schmersal 22 Beams Safety Light Curtain SLC440COM-ER-0650-35 103004003:
| Number of beams | 22 |
| Height of the protection field | 650 mm |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
Schmersal 22 Beams Safety Light Curtain SLC440COM-ER-0650-35, 103004003 Technical Specifications:
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 10 ms |
| Number of beams | 22 |
| PFH value | 8.05 x 10β»βΉ /h |
| Detection ability for test bodies at v = 1.6 m/s | 35 mm |
| Height of the protection field | 650 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 7 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of the connectable cable, maximum | 100 m |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of sensor | 691 mm |
| Degree of protection | IP67 |
| Ambient temperature | -10 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
| Gross weight | 1,120 g |
Please speak to our Technical Engineer for Schmersal 22 Beams Safety Light Curtain SLC440COM-ER-0650-35 part no: 103004003 at attractive prices. Technical Specs Summary of SLC440COM-ER-0650-35, 103004003 includes Aluminium housing material, designed for robust applications. The sensors have a range starting from 0.3 m to a maximum of 7 m providing reliable performance in various environments. The termination is facilitated through a Connector available in Connector plug M12, 5-pole and Connector plug M12, 4-pole configurations, ensuring secure and versatile connectivity. The sensors operate at a switching voltage of 24 V with an electrical power consumption of 10 W for the receiver and 5 W for the transmitter, ensuring efficient energy usage. The sensors' compact design includes a length of 33 mm a width of 27.8 mm and a height of 691 mm. Match Your Needs with a Quote for your requirement of Schmersal 22 Beams Safety Light Curtain. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
