In most procurement cycles, SLC440AS-ER-0810-14 is considered with Schmersal Limit Switch, Omron Safety Light Curtain and Schmersal Slc440Com Er 1050 30, giving decision-makers confidence that theyβve chosen the most dependable component.

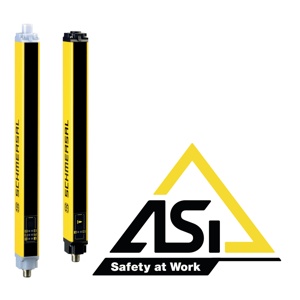

Schmersal SLC440AS-ER-0810-14 Safety Light Curtains
The Schmersal SLC440AS-ER-0810-14 Safety Light Curtains (Item No: 103007480) offers a 23 ms reaction time, maximum, 5.17 x 10β»βΉ /h PFH value, 14 mm detection ability for test bodies at v = 1.6 m/s, 0.3 m range, protection field, minimum. Manufactured by Schmersal under the Schmersal Safety Light Curtains. category, this model belongs to the Schmersal SLC Series.
| Brand | Schmersal |
| Product Type | Safety Light Curtain |
| Model Number | SLC440AS-ER-0810-14 |
Schmersal SLC440AS-ER-0810-14 Safety Light Curtains β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | optoelectronic |
| Housing material | Aluminium |
| Reaction time, maximum | 23 ms |
| Number of beams | 80 |
| PFH value | 5.17 x 10β»βΉ /h |
| Detection ability for test bodies at v = 1.6 m/s | 14 mm |
| Height of the protection field | 810 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 7 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Height of Receiver | 943 mm |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of the Sensor (Transmitter) | 923 mm |
| Degree of protection | IP67 |
| Ambient temperature | -10 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 0.35 mm |
| Restistance to shock | 10 g / 16 ms |
| Protection class | III |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Rated operating voltage | 24 VDC |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Power consumption, Receiver | 150 mA |
| Power consumption, Transmitter | 75 mA |
| Gross weight | 1,530 g |
Talk to Our Engineer for Schmersal 80 Beam & 810H Light Curtain SLC440AS-ER-0810-14 part no: 103007480 with exclusive offers. Core System Specifications of SLC440AS-ER-0810-14, 103007480 are Aluminium housing, designed for rigorous industrial environments. These sensors feature 80 beams, offering a robust protection field height of 810 mm ensuring comprehensive safety coverage. The termination is facilitated by a Connector plug M12, 5-pole and Connector plug M12, 4-pole configurations, offering flexibility in connectivity. The sensors' receiver stands at a height of 943 mm with a total sensor length of 33 mm making them compact and easy to integrate into various setups. Operating at a voltage of 24 VDC -15 % / +10 % (stabilised PELV power supply) these sensors deliver consistent performance. Rated with an IP67 degree of protection. Don't Miss Out on a Quote for your requirement of Schmersal 80 Beam & 810H Light Curtain. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
