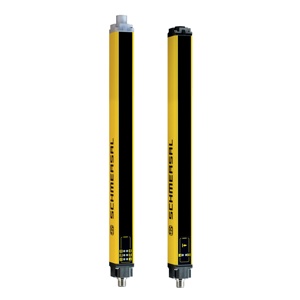

Schmersal SLC440-ER-0250-14-01 Safety Light Curtains
The Schmersal SLC440-ER-0250-14-01 Safety Light Curtains (Item No: 101216616) offers a 10 ms reaction time, maximum, 5.14 x 10β»βΉ /h PFH value, 14 mm detection ability for test bodies at v = 1.6 m/s, 0.3 m range, protection field, minimum. Manufactured by Schmersal under the Schmersal Safety Light Curtains. category, this model belongs to the Schmersal SLC Series.
| Brand | Schmersal |
| Product Type | Safety Light Curtain |
| Model Number | SLC440-ER-0250-14-01 |
Schmersal SLC440-ER-0250-14-01 Safety Light Curtains β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 10 ms |
| Number of beams | 24 |
| PFH value | 5.14 x 10β»βΉ /h |
| Detection ability for test bodies at v = 1.6 m/s | 14 mm |
| Height of the protection field | 250 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 7 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 8-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of the connectable cable, maximum | 100 m |
| Height of transmitter | 331 mm |
| Height of Receiver | 341 mm |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
| Gross weight | 630 g |
Obtain a Quote for Schmersal 24 Beam Light Curtain SLC440-ER-0250-14-01 part no: 101216616 at economical prices. Specifications Overview for SLC440-ER-0250-14-01, 101216616 reveals Aluminium housing, designed to withstand demanding industrial environments. These sensors are equipped with 24 beams, providing a protection field height of 250 mm for enhanced safety. The termination is supported by Connector plug M12, 8-pole and Connector plug M12, 4-pole configurations, ensuring reliable connectivity. Operating at a switching voltage of 24 V these sensors are engineered for consistent performance. The height of the transmitter is 331 mm while the receiver stands at 341 mm with the overall length of the sensor being 33 mm. Rated with an IP67 degree of protection. Take the First Step with a Quote for your requirement of Schmersal 24 Beam Light Curtain. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
