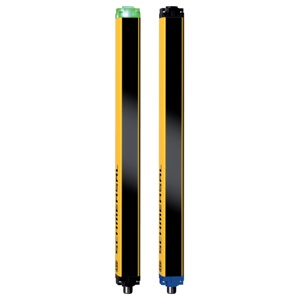

Schmersal SLC240COM-ER-1770-14 Safety Light Curtains
The Schmersal SLC240COM-ER-1770-14 Safety Light Curtains (Item No: 103016246) offers a 28 ms reaction time, maximum, 8.05 x 10β»βΉ /h PFH value, 14 mm detection ability for test bodies at v = 1.6 m/s, 0.3 m range, protection field, minimum. Manufactured by Schmersal under the Schmersal Safety Light Curtains. category, this model belongs to the Schmersal SLC Series.
| Brand | Schmersal |
| Product Type | Safety Light Curtain |
| Model Number | SLC240COM-ER-1770-14 |
Schmersal SLC240COM-ER-1770-14 Safety Light Curtains β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 28 ms |
| Number of beams | 176 |
| PFH value | 8.05 x 10β»βΉ /h |
| Detection ability for test bodies at v = 1.6 m/s | 14 mm |
| Height of the protection field | 1,770 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 6 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length of the connectable cable, maximum | 100 m |
| Length of sensor | 33 mm |
| Width of sensor | 27.8 mm |
| Height of sensor | 1,811 mm |
| Degree of protection | IP67 |
| Ambient temperature | -10 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 10 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | p-type |
| Gross weight | 2,840 g |
Please speak to our Technical Engineer for Schmersal 176 Beam Safety Curtain Sensor SLC240COM-ER-1770-14 part no: 103016246 at attractive prices. Technical Specs Summary of SLC240COM-ER-1770-14, 103016246 includes Aluminium housing, designed to meet the toughest industrial requirements. These sensors feature 176 beams, creating a protection field height of 1,770 mm ensuring optimal safety coverage. The termination is facilitated through Connector plug M12, 5-pole and Connector plug M12, 4-pole configurations, providing secure and versatile connectivity options. The protection field operates effectively within a range of 0.3 m to 6 m, making it suitable for various applications. Operating at a switching voltage of 24 V these sensors deliver reliable and consistent performance. Rated with an IP67 degree of protection. Match Your Needs with a Quote for your requirement of Schmersal 176 Beam Safety Curtain Sensor. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
