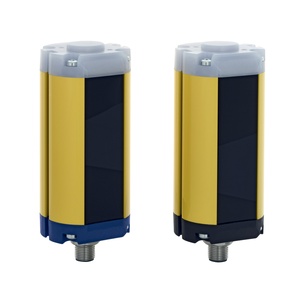

Schmersal SLB450-ER-1-ST-EH Safety Light Barriers
The Schmersal SLB450-ER-1-ST-EH Safety Light Barriers (Item No: aB533J5*5OA8) offers a Aluminium housing material, 21 ms reaction time, maximum, Connector M12 termination, IP67 degree of protection. Manufactured by Schmersal under the Schmersal Safety Light Barriers. category, this model belongs to the Schmersal SLB Series.
| Brand | Schmersal |
| Product Type | Safety Light Barrier |
| Model Number | SLB450-ER-1-ST-EH |
Schmersal SLB450-ER-1-ST-EH Safety Light Barriers β Technical Specifications
| Specification | Value |
|---|---|
| Product type description | SLB450-ER-1-ST-EH |
| Coding, light barrier beam | 1 |
| Housing material | Aluminium |
| Reaction time, maximum | 21 ms |
| Reaction time, minimum | 7 ms |
| Gross weight | 400 g |
| Restart interlock (manual reset) | Yes |
| Beam coding available | Yes |
| Electric heater | Yes |
| Integral system diagnostics, status | Yes |
| Integral system diagnostics | Yes |
| Number of fail-safe digital outputs | 2 |
| Number of beams | 1 |
| Standard | EN ISO 13849-1EN IEC 61508 |
| Performance Level, up to | e |
| Category | 4 |
| PFH value | 1.50 x 10β»βΈ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Safety type in accordance with IEC 61496-1 | 4 |
| Detection ability for test bodies at v = 1.6 m/s | 100 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 75 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector M12 |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Height | 126 mm |
| Diameter total | 49 mm |
| Degree of protection | IP67 |
| Storage and transport temperature | -30 ... +70 Β°C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 45 W |
| Electrical power consumption of the transmitter, maximum | 45 W |
| Length of cable, maximum | 100 m |
| Output current, (fail-safe output), maximum | 0.2 A |
| Design of control elements | p-type |
| Recommended safety switchgear | PROTECT PSC1SRB-E-204ST |
Talk to Our Engineer for Schmersal Safety Light Barriers SLB450-ER-1-ST-EH Item No: 103013517 with exclusive offers. Core System Specifications of SLB450-ER-1-ST-EH, 103013517 are Aluminium housing that ensures durability and long-term performance. With a maximum reaction time of 21 ms, it provides fast and responsive signaling. Weighing just 400 g, it is lightweight yet rugged. The system boasts an impressive PFH (Probability of a Dangerous Failure per Hour) value of 1.50 x 10β»βΈ /h, ensuring high functional safety. The protection field range starts at 0.3 m and extends up to 75 m, powered by a laser diode with a wavelength of 880 nm for optimal visibility. Termination is handled via an Connector M12, offering secure and quick connectivity. With an IP67 protection rating, it withstands harsh conditions and supports storage and transport temperatures from -30 ... +70 Β°C. Don't Miss Out on a Quote for your requirement of Safety Light Barriers SLB450-ER-1-ST-EH. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
