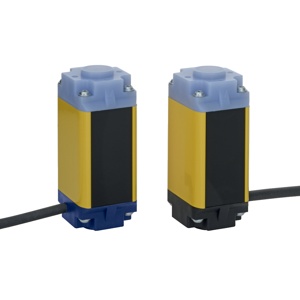

Schmersal SLB240-ER-1-ST Safety Light Barriers
The Schmersal SLB240-ER-1-ST Safety Light Barriers (Item No: 103013801) offers a 7 ms reaction time, minimum, 1.50 x 10⁻⁸ /h PFH value, 0.3 m detection ability for test bodies at v = 1.6 m/s, 40 mm safety integrity level. Manufactured by Schmersal under the Schmersal Safety Light Barriers. category, this model belongs to the Schmersal SLB Series.
| Brand | Schmersal |
| Product Type | Safety Light Barriers |
| Model Number | SLB240-ER-1-ST |
Schmersal SLB240-ER-1-ST Safety Light Barriers – Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Reaction time, maximum | 22 ms |
| Reaction time, minimum | 7 ms |
| Number of fail-safe digital outputs | 2 |
| Coding, light barrier beam | 1 |
| Number of beams | 1 |
| PFH value | 1.50 x 10⁻⁸ /h |
| Safety Integrity Level (SIL), suitable for applications in | 40 mm |
| Detection ability for test bodies at v = 1.6 m/s | 0.3 m |
| Range, protection field, minimum | 15 m |
| Range, protection field, maximum | 880 nm |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector M12 |
| Terminal connector, Recipient | Connector plug M12, 5-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Length | 33 mm |
| Width | 27.8 mm |
| Height | 91 mm |
| Degree of protection | IP67 |
| Ambient temperature | -30 ... +50 °C |
| Storage and transport temperature | -30 ... +70 °C |
| Protection class | III |
| Switching voltage OSSD, HIGH signal | 24 V |
| Electrical power consumption of the receiver, maximum | 5 W |
| Electrical power consumption of the transmitter, maximum | 5 W |
| Length of cable, maximum | 100 m |
| Output current, (fail-safe output), maximum | 0.2 A |
| Design of control elements | p-type |
| Gross weight | 170 g |
Ask for the Pricing of Schmersal Safe OSSD Outputs to PLC SLB240-ER-1-ST part no: 103013801 at unbeatable prices. Detailed Specifications of SLB240-ER-1-ST, 103013801 feature Aluminium housing, ensuring durability and long-term performance. With a maximum reaction time of 22 ms and a single light barrier beam, it provides quick and accurate detection. The protection field ranges from 0.3 m to 15 m making it versatile for various applications. The sensor is IP67-rated, offering excellent protection against dust and water, suitable for harsh environments. It operates efficiently within an ambient temperature range of -30 ... +50 °C ensuring consistent performance even in extreme conditions. The sensor is powered by a 24 V supply, with a maximum electrical power consumption of 5 W for both the receiver and transmitter. Now's the Time to Secure a Quote for your requirement of Schmersal Safe OSSD Outputs to PLC. We're committed to offering more favorable pricing and more responsive support than other Traders.
