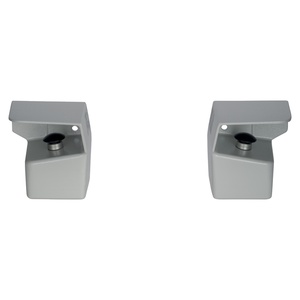

Schmersal SEP09.0.3.0.22/95 Two-hand Control Panels
The Schmersal SEP09.0.3.0.22/95 Two-hand Control Panels (Item No: 101022851) offers a 10,000,000 Operations mechanical life, minimum, Screw terminals M20 x 1.5 termination, IP54 degree of protection, 440 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Two-hand Control Panels. category, this model belongs to the Schmersal SEP Series.
| Brand | Schmersal |
| Product Type | Two-hand control panel |
| Model Number | SEP09.0.3.0.22/95 |
Schmersal SEP09.0.3.0.22/95 Two-hand Control Panels β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Aluminium |
| Housing coating material | powder-coated |
| Material of the sealing plate | Aluminium |
| Colour of the housing | RAL 7004 |
| Gross weight | 3,500 g |
| Construction kit possible | Yes |
| Number of normally closed (NC) | 2 |
| Number of normally open (NO) | 2 |
| Number of operating push buttons (positioning parts) | 2 |
| Mechanical life, minimum | 10,000,000 Operations |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 1.5 mmΒ² |
| Width | 155 mm |
| Height | 160 mm |
| Depth | 150 mm |
| Length x Width x Height | Operating push buttons (positioning parts): 42 mm |
| Degree of protection | IP54 |
| Rated insulation voltage Ui | 440 V |
| Thermal test current | 10 A |
