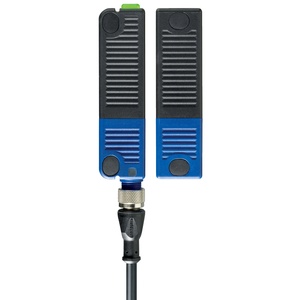

Schmersal RSS 36-I2-ST-AS Command and Signalling Devices
The Schmersal RSS 36-I2-ST-AS Command and Signalling Devices offers a 1,000,000 Operations mechanical life, minimum, Connector plug M12, 4 pole, (A coding)termination, IP65IP67IP69 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Command and Signalling Devices. category, this model belongs to the Schmersal WK Series.
| Brand | Schmersal |
| Product Type | Command and Signalling Devices |
| Model Number | RSS 36-I2-ST-AS |
Schmersal RSS 36-I2-ST-AS Command and Signalling Devices – Technical Specifications
| Specification | Value |
|---|---|
| Installation conditions (mechanical) | not flush |
| Gross weight | 103 g |
| Mechanical life, minimum | 1,000,000 Operations |
| Termination | Connector plug M12, 4 pole, (A coding) |
| Degree of protection | IP65IP67IP69 |
| Ambient temperature | 25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Degree of pollution | 3 |
