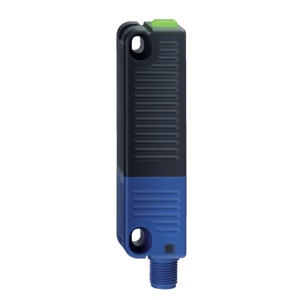

RSS 36-D-ST5: 103025096 - Schmersal M12 Connection Safety Sensors
Technical Specifications Schmersal M12 Connection Safety Sensors RSS 36-D-ST5 103025096:
| Working Principle | RFID |
| PFH value | 2.70 x 10β»ΒΉβ° /h |
| Termination | Connector M12, 5-pole, A-coded |
| Operating Voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
Schmersal M12 Connection Safety Sensors, RSS 36-D-ST5, 103025096 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | RFID |
| Frequency band RFID | 125 kHz |
| Transmitter output RFID, maximum | -6 dB/m |
| Housing construction form | Block |
| Installation conditions (mechanical) | Not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Duration of risk, maximum | 200 ms |
| Reaction time, switching off safety outputs via actuator, maximum | 100 ms |
| Reaction time, switching off safety outputs via safety inputs, maximum | 0.5 ms |
| Number of LEDs | 3 |
| Number of semi-conductor outputs with signaling function | 1 |
| Number of fail-safe digital outputs | 2 |
| Performance Level, up to | e |
| Category | 4 |
| PFH value | 2.70 x 10β»ΒΉβ° /h |
| PFD value | 2.10 x 10β»β΅ |
| Actuating panels | lateral |
| Active area | lateral |
| Mounting | A screw length of 25 mm is sufficient for sensor mounting and for side mounting of the actuators. 30 mm long screws are recommended when the actuator is mounted upright and/or when the sealing discs are used. |
| Type of the fixing screws | 2x M4 (cylinder head screws with washers DIN 125A / form A) |
| Tightening torque of the fixing screws, minimum | 2.2 Nm |
| Tightening torque of the fixing screws, maximum | 2.5 Nm |
| Switch distance, typical | 12 mm |
| Hysteresis (Switching distance), maximum | 2 mm |
| Repeat accuracy R | 0.5 mm |
| Termination | Connector M12, 5-pole, A-coded |
| Length of sensor | 22 mm |
| Width of sensor | 106.3 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP65, IP67, IP69 |
| Ambient temperature | -28 ... +70 Β°C |
| Storage and transport temperature | -28 ... +85 Β°C |
| Relative humidity, maximum | 93 % |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| Operating current, minimum | 0.5 mA |
| No-load supply current I0, typical | 35 mA |
| Rated operating voltage | 24 VDC |
| Operating current | 600 mA |
| Required rated short-circuit current | 100 A |
| Time to readiness, maximum | 2,000 ms |
| Switching frequency, maximum | 1 Hz |
| Designation, Safety outputs | Y1 and Y2 |
| Rated operating current (safety outputs) | 250 mA |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | short-circuit proof, p-type |
| Gross Weight | 80 g |
Reach Us by Email for M12 Connection Safety Sensors RSS 36-D-ST5 part no: 103025096 at attractive prices. In-depth Technical Analysis of RSS 36-D-ST5, 103025096 feature RFID Magnetic Reed Switch Sensor designed for industrial applications requiring precise control and reliability. Operating within a 125 kHz frequency band, this sensor features a Block housing constructed from Glass-fibre, reinforced thermoplastic ensuring durability and resilience. The sensor has a maximum reaction time of 100 ms and a typical switch distance of 12 mm with a hysteresis of 2 mm for accurate switching operations. It uses an Connector M12, 5-pole, A-coded for secure termination. The sensor measures 22 mm in length and operates at 24 VDC -15 % / +10 % (stabilised PELV power supply) accommodating a current of 600 mA. The sensor is rated IP65, IP67, IP69. Now's the Time to Secure a Quote for your requirement of M12 Connection Safety Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
