During technical comparisons, PSC1-C-10-SDM2-FB2-PBPS appears alongside Schmersal Limit Switch, Schmersal Psc1 C 100 Fb1 Mt and Schmersal Door Locking Devices so engineers assess signal types, ingress protection, and ambient tolerances accurately.

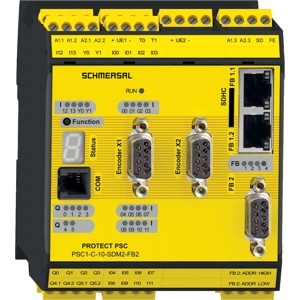

Schmersal PSC1-C-10-SDM2-FB2-PBPS Safety controllers
The Schmersal PSC1-C-10-SDM2-FB2-PBPS Safety controllers (Item No: 103012230) offers a 1.26 x 10⁻⁸ /h PFH value, Removable screw terminals, IP20 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety controllers. category, this model belongs to the Schmersal PSC Series.
| Brand | Schmersal |
| Product Type | Safety controller |
| Model Number | PSC1-C-10-SDM2-FB2-PBPS |
Schmersal PSC1-C-10-SDM2-FB2-PBPS Safety controllers – Technical Specifications
| Specification | Value |
|---|---|
| PFH value | 1.26 x 10⁻⁸ /h |
| Mounting | can be clipped into standard rail |
| Cable section, minimum | 0.2 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section, minimum | 24 AWG |
| Wire cross-section, maximum | 12 AWG |
| Wire cross-section | 24 ... 12 AWG |
| Terminal (mechanical) | Removable screw terminals |
| Width | 90 mm |
| Height | 100 mm |
| Depth | 115 mm |
| Degree of protection | IP20 |
| Ambient temperature | 0 ... +50 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Relative humidity, minimum | 5 % |
| Relative humidity, maximum | 85 % |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Operating voltage | 24 VDC -15 % / +20 % |
| Rated operating voltage | 24 VDC |
| Designation, Communication interface | DSUB |
| Rated operating current (safety outputs) | 2,000 mA |
| Design of control elements | short-circuit proof, p-type (Q2 und Q3) |
Send Your Inquiry for Schmersal 100 mm Height Safety Controller PSC1-C-10-SDM2-FB2-PBPS part no: 103012230 with cost-effective solutions. Essential Technical Specs of PSC1-C-10-SDM2-FB2-PBPS, 103012230 are PFH value of 1.26 x 10⁻⁸ /h ensuring high safety integrity. Designed for easy installation, it can be clipped into standard rail with Removable screw terminals providing secure connections. The controller operates at a rated voltage of 24 VDC and supports a rated operating current of 2,000 mA making it suitable for various industrial applications. Its compact design includes a height of 100 mm and depth of 115 mm fitting seamlessly into tight spaces. The controller is IP20 rated. Capture the Best Deal with a Quote for your requirement of Schmersal 100 mm Height Safety Controller. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
