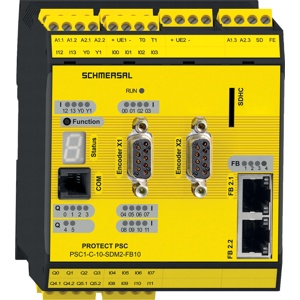

Schmersal PSC1-C-10-SDM2-FB10-PNPS Safety controllers
The Schmersal PSC1-C-10-SDM2-FB10-PNPS Safety controllers (Item No: 103049472) offers a 1.26 x 10⁻⁸ /h PFH value, Removable screw terminals, IP20 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety controllers. category, this model belongs to the Schmersal PSC Series.
| Brand | Schmersal |
| Product Type | Safety controller |
| Model Number | PSC1-C-10-SDM2-FB10-PNPS |
Schmersal PSC1-C-10-SDM2-FB10-PNPS Safety controllers – Technical Specifications
| Specification | Value |
|---|---|
| PFH value | 1.26 x 10⁻⁸ /h |
| Mounting | can be clipped into standard rail |
| Cable section, minimum | 0.2 mm² |
| Cable section, maximum | 2.5 mm² |
| Wire cross-section, minimum | 24 AWG |
| Wire cross-section, maximum | 12 AWG |
| Wire cross-section | 24 ... 12 AWG |
| Terminal (mechanical) | Removable screw terminals |
| Width | 90 mm |
| Height | 100 mm |
| Depth | 115 mm |
| Degree of protection | IP20 |
| Ambient temperature | 0 ... +50 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Relative humidity, minimum | 5 % |
| Relative humidity, maximum | 85 % |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Operating voltage | 24 VDC -15 % / +20 % |
| Rated operating voltage | 24 VDC |
| Designation, Communication interface | RJ45 |
| Rated operating current (safety outputs) | 2,000 mA |
| Design of control elements | short-circuit proof, p-type (Q2 und Q3) |
Talk to Our Engineer for Schmersal Compact Safety Controller PSC1-C-10-SDM2-FB10-PNPS part no: 103049472 with exclusive offers. Core System Specifications of PSC1-C-10-SDM2-FB10-PNPS, 103049472 are PFH value of 1.26 x 10⁻⁸ /h ensuring high safety integrity. Designed for easy installation, it can be clipped into standard rail with Removable screw terminals providing secure connections. The controller operates at a rated voltage of 24 VDC and supports a rated operating current of 2,000 mA making it suitable for various industrial applications. Its compact design includes a height of 100 mm and depth of 115 mm fitting seamlessly into tight spaces. The controller is IP20 rated.Don't Miss Out on a Quote for your requirement of Schmersal Compact Safety Controller. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
