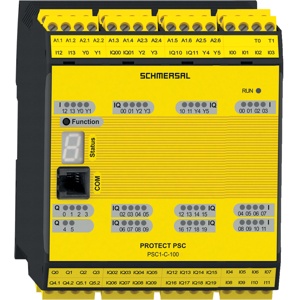

Schmersal PSC1-C-10-FB1-PNPS Safety controllers
The Schmersal PSC1-C-10-FB1-PNPS Safety controllers (Item No: 103011986) offers a 1.26 x 10โปโธ /h PFH value, Removable screw terminals, IP20 degree of protection, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safety controllers. category, this model belongs to the Schmersal PSC Series.
| Brand | Schmersal |
| Product Type | Safety controller |
| Model Number | PSC1-C-10-FB1-PNPS |
Schmersal PSC1-C-10-FB1-PNPS Safety controllers โ Technical Specifications
| Specification | Value |
|---|---|
| PFH value | 1.26 x 10โปโธ /h |
| Mounting | can be clipped into standard rail |
| Cable section, minimum | 0.2 mmยฒ |
| Cable section, maximum | 2.5 mmยฒ |
| Wire cross-section, minimum | 24 AWG |
| Wire cross-section, maximum | 12 AWG |
| Wire cross-section | 24 ... 12 AWG |
| Terminal (mechanical) | Removable screw terminals |
| Width | 67.5 mm |
| Height | 100 mm |
| Depth | 115 mm |
| Degree of protection | IP20 |
| Ambient temperature | 0 ... +50 ยฐC |
| Storage and transport temperature | -25 ... +70 ยฐC |
| Relative humidity, minimum | 5 % |
| Relative humidity, maximum | 85 % |
| Permissible installation altitude above sea level, maximum | 2,000 m |
| Operating voltage | 24 VDC -15 % / +20 % |
| Rated operating voltage | 24 VDC |
| Designation, Communication interface | RJ45 |
| Rated operating current (safety outputs) | 2,000 mA |
| Design of control elements | short-circuit proof, p-type (Q2 und Q3) |
| Gross weight | 581 g |
Call us for Schmersal PROFINET Safety Controller PSC1-C-10-FB1-PNPS part no: 103011986 at the best rates. Technical Attributes of PSC1-C-10-FB1-PNPS, 103011986 are PFH value of 1.26 x 10โปโธ /h ensuring high safety integrity. Designed for easy installation, it can be clipped into standard rail with Removable screw terminals providing secure connections. The controller operates at a rated voltage of 24 VDC and supports a rated operating current of 2,000 mA making it suitable for various industrial applications. Its compact design includes a height of 100 mm and depth of 115 mm fitting seamlessly into tight spaces. The controller is IP20 rated, offering protection against solid objects, and weighs 592 g. Unlock Exclusive Pricing with a Quote for your requirement of Schmersal PROFINET Safety Controller. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
