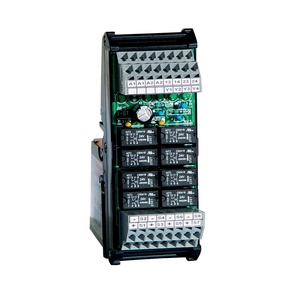

Schmersal PROTECT-IE-11-SK Safe Signal Processing
The Schmersal PROTECT-IE-11-SK Safe Signal Processing (Item No: 101189095) offers a 10,000,000 Operations mechanical life, minimum, 0.14 mmΒ² cable section, minimum, IP20 degree of protection of the enclosure, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safe Signal Processing. category, this model belongs to the Schmersal AES Series.
| Brand | Schmersal |
| Product Type | Safe Signal Processing |
| Model Number | PROTECT-IE-11-SK |
Schmersal PROTECT-IE-11-SK Safe Signal Processing β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Number of LEDs | 5 |
| Number of normally closed (NC) | 1 |
| Number of normally open (NO) | 1 |
| Number of safety contacts | 2 |
| Performance Level, up to | d |
| Relay outputs - Category | 3 |
| PFH value | 2.00 x 10β»β· /h |
| Relay outputs - Notice | for max. 36,500 switching cycles/year and max. 60% contact load |
| Safety Integrity Level (SIL), suitable for applications in | 2 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 10,000,000 Operations |
| Mounting | Snaps onto standard DIN rail to EN 60715 |
| Terminal designations | IEC/EN 60947-1 |
| Termination | Screw connection, plug-in |
| Cable section, minimum | 0.14 mmΒ² |
| Cable section, maximum | 1.5 mmΒ² |
| Width | 48 mm |
| Height | 126 mm |
| Depth | 61 mm |
| Degree of protection of the enclosure | IP20 |
| Degree of protection of the mounting space | IP20 |
| Degree of protection of clips or terminals | IP20 |
| Storage and transport temperature | -40 ... +85 Β°C |
| Resistance to vibrations | 10...55 Hz, Amplitude 0.35 mm, Β± 15 % |
| Restistance to shock | 30 g / 11 ms |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Degree of pollution | 2 |
| Operating voltage | 24 VDC -15 % / +20 % |
| Ripple voltage | 10 % |
| Rated operating voltage | 24 VDC |
| Rated AC voltage for controls at DC minimum | 20.4 VDC |
| Electrical power consumption | 1.7 W |
| Contact resistance, maximum | 0.1 Ξ© |
| Electrical data - Note (Contact resistance) | in new state |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 2 A |
| Switching capacity, minimum | 10 mA |
| Switching capacity, maximum | 2 A |
| Input signal, HIGH Signal "1" | 19 - 28,8 VDC |
| Input signal, LOW Signal "0" | 0 - 1 VDC |
| Conduction resistance, maximum | 40 Ξ© |
| Voltage, Utilisation category DC-12 | 24 VDC |
| Current, Utilisation category DC-12 | 0.1 A |
| Switching capacity, maximum | 0.1 A |
| EMC rating | EMC-Directive |
Call us for Schmersal Safe Signal Processing PROTECT-IE-11-SK Item No: 101189095 at the best rates. Technical Attributes of PROTECT-IE-11-SK, 101189095 are housing is made of Glass-fibre reinforced thermoplastic, ventilated design, ensuring structural integrity and thermal resistance. Termination is achieved via Screw connection, plug-in, supporting cable sections from 0.14 mmΒ² to 1.5 mmΒ². The tightening torque for clips is rated at , ensuring secure electrical connections. Compact in size, the unit measures 48 mm in width, 126 mm in height, and 61 mm in depth. Terminal clips are rated IP20, providing basic protection against solid objects. Designed to withstand harsh conditions, the unit operates reliably in storage and transport temperatures between -40 ... +85 Β°C. It resists vibrations of 10...55 Hz, Amplitude 0.35 mm, Β± 15 % and shock up to 30 g / 11 ms. The rated impulse withstanding voltage (Uimp) is 0.8 kV. Unlock Exclusive Pricing with a Quote for your requirement of Safe Signal Processing PROTECT-IE-11-SK. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
