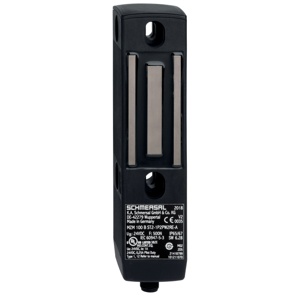

Schmersal MZM 100 ST2-1P2PW-A Solenoid Interlock
The Schmersal MZM 100 ST2-1P2PW-A Solenoid interlocks (Item No: 101199623) offers a 150 ms reaction time, maximum, 2 number of safety contacts, 750 N holding force, typically, Connector M12, 8-pole termination. Manufactured by Schmersal under the Schmersal Solenoid interlocks category, this model belongs to the Schmersal MZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlock |
| Model Number | MZM 100 ST2-1P2PW-A |
Schmersal MZM 100 ST2-1P2PW-A Solenoid Interlock β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | inductive |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Reaction time, maximum | 150 ms |
| Duration of risk, maximum | 150 ms |
| Gross weight | 618 g |
| Number of safety contacts | 2 |
| PFH value | 3.54 x 10β»βΉ /h |
| Holding force, typically | 750 N |
| Holding force, guaranteed | 500 N |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the fixing screws | 8 Nm |
| Length of sensor chain, maximum | 200 m |
| Termination | Connector M12, 8-pole |
| Length of sensor | 40 mm |
| Width of sensor | 40 mm |
| Height of sensor | 177.5 mm |
| Degree of protection | IP65 IP67 |
| Ambient temperature | -25 ... +55 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Relative humidity, minimum | 30 % |
| Relative humidity, maximum | 95 % |
| Note (Relative humidity) | non-condensing non-icing |
| Resistance to vibrations | 10 β¦ 150 Hz, amplitude 0.35 mm / 5 g |
| Restistance to shock | 30 g / 11 ms |
| Protection class | III |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Operating voltage | 24 VDC -15 % / +10 % (stabilised PELV power supply) |
| No-load supply current I0, typical | 100 mA |
| Current consumption with magnet ON, average | 350 mA |
| Current consumption with magnet ON, peak | 550 mA / 10 ms |
Get a quote for Schmersal Max 2V Drop Solenoid Interlocks MZM 100 ST2-1P2PW-A (part no: 101199623) at competitive prices. The MZM 100 ST2-1P2PW-A datasheet outlines its inductive working principle, ideal for secure and precise applications. The housing is constructed from self-extinguishing, glass-fiber reinforced thermoplastic plastic, ensuring high durability and safety. With compact dimensions of 40 mm in length, 40 mm in width, and 177.5 mm in height, this sensor is perfect for various industrial environments. Termination is provided through an 8-pole M12 connector for reliable and stable connections. The device operates on a rated voltage of 24 VDC and an operating current of 1,100 mA, delivering consistent performance. Its control elements are short-circuit proof and p-type designed. Take the first step by requesting a quote for your MZM 100 ST2-1P2PW-A needs. Our commitment to offering better pricing and exceptional support sets us apart from other competitors. For more details, download the MZM 100 ST2-1P2PW-A pdf.
