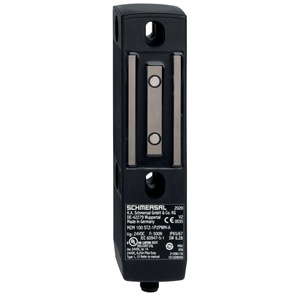

Schmersal MZM 100 B ST2-1P2PW2R-A-DU Solenoid Interlocks
The Schmersal MZM 100 B ST2-1P2PW2R-A-DU Solenoid Interlocks (Item No: 103048086) offers a inductive working principle, Connector M12, 8-poletermination, IP65IP67 degree of protection, 32 VDC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Solenoid Interlocks. category, this model belongs to the Schmersal MZM Series.
| Brand | Schmersal |
| Product Type | Solenoid Interlocks |
| Model Number | MZM 100 B ST2-1P2PW2R-A-DU |
Schmersal MZM 100 B ST2-1P2PW2R-A-DU Solenoid Interlocks β Technical Specifications
| Specification | Value |
|---|---|
| Coding level according to EN ISO 14119 | Low |
| Working principle | inductive |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Gross weight | 623 g |
| Type of the fixing screws | 2x M6 |
| Termination | Connector M12, 8-pole |
| Length of sensor | 40 mm |
| Width of sensor | 40 mm |
| Height of sensor | 177.5 mm |
| Degree of protection | IP65IP67 |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Magnet switch-on time | 100 % |
| Test pulse duration, maximum | 5 ms |
| Test pulse interval, minimum | 40 ms |
Send Your Inquiry for Schmersal Solenoid interlocks MZM 100 B ST2-1P2PW2R-A-DU part no: 103048086 with cost-effective solutions. Essential Technical Specs of MZM 100 B ST2-1P2PW2R-A-DU, 103048086 are inductive safety switch, designed for durability and reliability in industrial environments. The housing is made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing, ensuring a lightweight yet robust construction with a gross weight of 623 g. It features an Connector M12, 8-pole system, facilitating easy installation. With dimensions of 40 mm in length, 40 mm in width, and 177.5 mm in height, it is compact yet highly efficient. The IP65IP67 protection rating guarantees resistance against dust, water jets, and temporary immersion, making it suitable for demanding applications. The switch operates at a rated insulation voltage (Ui) of 32 VDC, ensuring electrical safety. Additionally, it has a rated impulse withstand voltage (Uimp) of 0.8 kV, providing high surge protection. Capture the Best Deal with a Quote for your requirement of Solenoid interlocks. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
