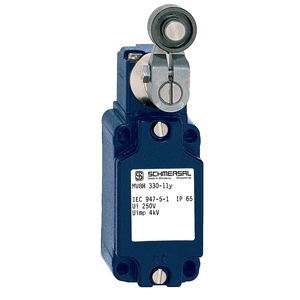

Schmersal MV8H 015-11Y Limit Switch
The Schmersal MV8H 015-11Y Limit Switch (Item No: 131058472) offers a mechanical working principle, 10,000,000 Operationsmechanical life, minimum, Screw terminals M20 x 1.5 termination, IP65 degree of protection. Manufactured by Schmersal under the Schmersal Limit Switch. category, this model belongs to the Schmersal TV Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | MV8H 015-11Y |
Schmersal MV8H 015-11Y Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Gross weight | 385 g |
| Number of normally closed (NC) | 1 |
| Number of normally open (NO) | 1 |
| Actuating element | Roller lever |
| Roller material | Plastic |
| Mechanical life, minimum | 10,000,000 Operations |
| Actuating angle, from left of switch axis | 30 Β° |
| Actuating angle, from right of switch axis | 30 Β° |
| Contact opening | 2 x 1.2 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 3 m/s |
| Actuating torque | 0.2 Nm |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 2.5 mmΒ² |
| Connection technique - Wire cross-section | 13 AWG |
| Length of sensor | 43 mm |
| Width of sensor | 67 mm |
| Height of sensor | 126 mm |
| Width of Castor | 8.5 mm |
| Diameter of Castor | 20 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 Β°C |
| Rated insulation voltage Ui | 500 V |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 2.5 A |
| Switching element | NO contact, NC contact |
| Switching principle | Snap action |
| Material of the contacts, electrical | Silver |
Send Your Inquiry for Medium-duty position switches MV8H 015-11Y part no: 131058472 with cost-effective solutions. Essential Technical Specs of MV8H 015-11Y, 131058472 are Light-alloy diecast, paint finish, ensuring durability in industrial environments. The switch features a Roller lever actuating element, providing precise mechanical operation. With a gross weight of 385 g, it maintains a compact yet robust design. The connection technique supports 13 AWG wire cross-section, ensuring reliable electrical connections. Dimensions include a sensor length of 43 mm, width of 67 mm, and height of 126 mm. The castor width is 8.5 mm, with a diameter of 20 mm, enhancing mechanical efficiency. The unit is rated IP65, offering protection against dust and water ingress. Designed for high-voltage applications, it features a rated insulation voltage (Ui) of 500 V, ensuring electrical safety. Capture the Best Deal with a Quote for your requirement of Medium-duty position switches . Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
