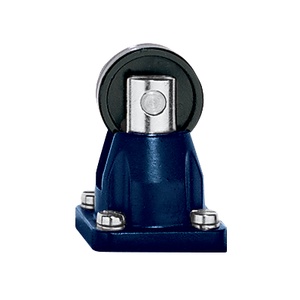

Schmersal MR 461-22Y Limit Switch
The Schmersal MR 461-22Y Limit Switch (Item No: 101058853) offers a mechanical working principle, 5,000,000 Operationsmechanical life, minimum, Screw terminals M20 x 1.5 termination, IP65 degree of protection. Manufactured by Schmersal under the Schmersal Limit Switch. category, this model belongs to the Schmersal TV Series.
| Brand | Schmersal |
| Product Type | Limit Switch |
| Model Number | MR 461-22Y |
Schmersal MR 461-22Y Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Castor |
| Housing material | Grey cast iron, galvanised |
| Housing coating material | painted |
| Gross weight | 1,955 g |
| Number of normally closed (NC) | 2 |
| Number of normally open (NO) | 2 |
| Actuating element | Roller plunger |
| Roller material | Plastic |
| Mechanical life, minimum | 5,000,000 Operations |
| Actuating angle, from left of switch axis | 30 ° |
| Actuating angle, from right of switch axis | 30 ° |
| Contact opening | max. 2 x 2.5 mm |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | 0.5 m/s |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 2.5 mm² |
| Connection technique - Wire cross-section | 13 AWG |
| Length of sensor | 64 mm |
| Width of sensor | 118 mm |
| Height of sensor | 201 mm |
| Width of Castor | 6.5 mm |
| Diameter of Castor | 25 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 °C |
| Rated insulation voltage Ui | 250 VAC |
| Thermal test current | 16 A |
| Utilisation category AC-15 | 4 A |
| Switching element | NO contact / NC contact |
| Switching principle | Snap action |
| Material of the contacts, electrical | Silver |
IndMALL Automation Dealing offers Medium-duty position switches MR 461-22Y part no: 101058853 at unbeatable prices. The Main Technical Parameters of MR 461-22Y, 101058853 feature Grey cast iron, galvanised, ensuring durability in industrial environments. The switch features a Roller plunger actuating element, providing precise mechanical operation. With a gross weight of 1,955 g, it maintains a compact yet robust design. The connection technique supports 13 AWG wire cross-section, ensuring reliable electrical connections. Dimensions include a sensor length of 64 mm, width of 118 mm, and height of 201 mm. The castor width is 6.5 mm, with a diameter of 25 mm, enhancing mechanical efficiency. The unit is rated IP65, offering protection against dust and water ingress. Designed for high-voltage applications, it features a rated insulation voltage (Ui) of 250 VAC, ensuring electrical safety. Take the First Step with a Quote for your requirement of Medium-duty position switches . Choose us for unparalleled pricing and support over other Dealers & Distributors.
