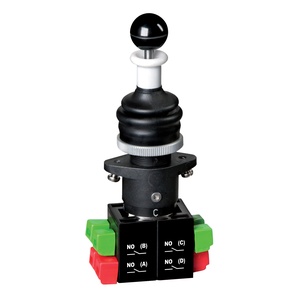

Schmersal MKTC52/WKT-26 Command and Signalling Devices
The Schmersal MKTC52/WKT-26 Command and Signalling Devices offers a 22.3 mm mounting diameter, 6 mmthickness of the front panel, maximum, IP65IP67 degree of protection, 400 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Command and Signalling Devices. category, this model belongs to the Schmersal WK Series.
| Brand | Schmersal |
| Product Type | Command and Signalling Devices |
| Model Number | MKTC52/WKT-26 |
Schmersal MKTC52/WKT-26 Command and Signalling Devices โ Technical Specifications
| Specification | Value |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the front ring | Aluminium anodised |
| Material of the bellows | Silicone |
| Material thickness of the sealing bellows | 2 mm |
| Colour of the front ring | Silver |
| Colour of the bellows | Grey |
| Gross weight | 160 g |
| Return to zero position | Yes |
| External applications | Yes |
| Galvanically separated contact bridges | Yes |
| Probing possible | Yes |
| Number of auxiliary contacts | 4 |
| Number of directions | 4 |
| Number of normally open (NO) per direction | 1 |
| Number of switch positions | 4 |
| Number of switching stages | 4 |
| Latching position | leftrightbottomabove |
| Mechanical life, minimum | 500,000 Operations |
| Actuating force, approx. | 11 N |
| Mounting | Knurled nut |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 0.5 mmรยฒ |
| Cable section, maximum | 2.5 mmรยฒ |
| Mounting depth | 70 mm |
| Length of the actuator | 77 mm |
| Mounting diameter | 22.3 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Thickness of the front panel, maximum | 6 mm |
| Diameter for the Installation to EN 60947 1 | 22.3 + 0.4 mm |
| Spacing | 80 x 80 mm |
| Degree of protection | IP65IP67 |
| Ambient temperature | 25 ... +80 รยฐC |
| Resistance to vibrations | 10 รขโฌยฆ 200 Hz, with 20 g |
| Restistance to shock | 110 g / 4 ms 30 g / 18 ms |
| Rated insulation voltage Ui | 400 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Degree of pollution | 3 |
| Thermal test current | 10:00 AM |
| Utilisation category AC 15 | 8:00 AM |
| Utilisation category DC 13 | 5:00 AM |
| Switching element | NO contact / NO contact / NO contact / NO contact |
| Switching principle | Slow action |
