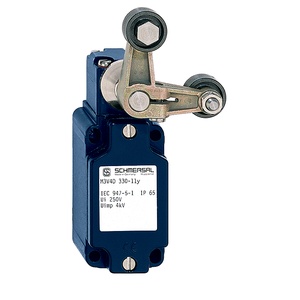

Schmersal M3V4D 330-11Y-1366 Position Switch
The Schmersal M3V4D 330-11Y-1366 Position Switch (Item No: ) offers a Light-alloy diecast, paint finish housing material, Forked roller lever actuating element, IP65 degree of protection, -30 ... +160 °C ambient temperature. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TL Series.
| Brand | Schmersal |
| Product Type | Position switch |
| Model Number | M3V4D 330-11Y-1366 |
Schmersal Position Switch – Technical Specifications
| Specification | Value |
|---|---|
| mechanical | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Gross weight | 305 g |
| Number of normally closed (NC) | - |
| open (NO) | - |
| Actuating element | Forked roller lever |
| Roller material | Brass |
| Actuating angle, from left of switch axis | - |
| Actuating angle, from right of switch axis | - |
| Contact opening | - |
| Actuating speed, minimum | 1 mm/min |
| Actuating speed, maximum | - |
| Termination | - |
| Cable section, minimum | - |
| Cable section, maximum | - |
| Wire cross-section | 13 AWG |
| Length of sensor | 40 mm |
| Width of sensor | 84 mm |
| Height of sensor | 120 mm |
| Width of Castor | 8.5 mm |
| Diameter of Castor | 20 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +160 °C |
| Rated insulation voltage Ui | 250 VAC |
| Thermal test current | 6 A |
| Material of the contacts, electrical | Silver |
Reach Us by Email for Schmersal Position Switch M3V4D 330-11Y-1366 part no: 133031457 at Discounted Rates. Key Technical Features of M3V4D 330-11Y-1366, 133031457 are the housing is made of Light-alloy diecast, paint finish, ensuring strength and corrosion resistance. Featuring a Forked roller lever actuating element, this switch guarantees precise mechanical operation with a Roller material Brass operations. The Actuating speed, minimum 1 mm/min, supporting a Wire cross-section 13 AWG for secure connections. The sensor measures 40 mm in length, 84 mm in width, and 120 mm in height, making it ideal for industrial use. It carries an IP65 protection rating, safeguarding it against dust and water exposure. The switch operates in ambient temperatures ranging from -30 ... +160 °C, ensuring reliability in extreme conditions. It supports a rated insulation voltage (Ui) of 250 VAC and features with an switching principle. Navigate Your Needs with a Quote for your requirement of Position Switch. Our pricing and support are unrivaled, especially when compared to other Competitors.
