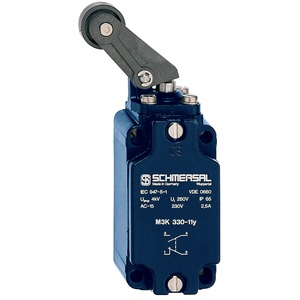

Schmersal M3R 330-11Y-U270-ST-2467 Position Switch
The Schmersal M3R 330-11Y-U270-ST-2467 Position Switch (Item No: 131178049) offers a mechanical working principle, 40 mm length of sensor, IP65 degree of protection, 250 VAC rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Position Switch. category, this model belongs to the Schmersal TV8H Series.
| Brand | Schmersal |
| Product Type | Position Switch |
| Model Number | M3R 330-11Y-U270-ST-2467 |
Schmersal M3R 330-11Y-U270-ST-2467 Position Switch β Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Slide form | Castor |
| Housing material | Light-alloy diecast, paint finish |
| Housing coating material | painted |
| Actuating element | Roller plunger |
| Roller material | Plastic |
| Actuating speed, minimum | 1 mm/min |
| Wire cross-section | 13 AWG |
| Length of sensor | 40 mm |
| Width of sensor | 75.3 mm |
| Height of sensor | 103.5 mm |
| Width of Castor | 4.6 mm |
| Degree of protection | IP65 |
| Ambient temperature | -30 ... +90 Β°C |
| Restistance to shock | 50 g / 6 ms |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 6 A |
| Bounce duration, maximum | 1.5 ms |
| Material of the contacts, electrical | Silver |
| Number of normally closed (NC) | 1 |
| Number of normally open (NO) | 1 |
| Mechanical life, minimum | 30,000,000 Operations |
| Actuating force, minimum | 17 N |
| Contact opening | 2 x 0.5 mm |
| Repeat accuracy of switching points | 0.02 mm |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1.5 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Switching element | NO contact, NC contact |
| Switching principle | Snap action |
