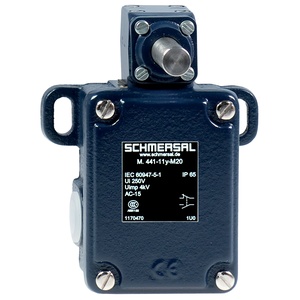

Schmersal M. 441-11Y-T-M20 Belt Alignment Switch
The Schmersal M. 441-11Y-T-M20 Belt Alignment Switch (Item No: 101170473) offers a 10,000,000 Operations mechanical life, minimum, Screw terminals M20 x 1.5 termination, IP65 degree of protection, NO contact, NC contact switching element. Manufactured by Schmersal under the Schmersal Belt Alignment Switch. category, this model belongs to the Schmersal M Series.
| Brand | Schmersal |
| Product Type | Belt Alignment Switch |
| Model Number | M. 441-11Y-T-M20 |
Schmersal M. 441-11Y-T-M20 Belt Alignment Switch – Technical Specifications
| Specification | Value |
|---|---|
| Working principle | mechanical |
| Housing material | Grey cast iron, galvanised |
| Housing coating material | painted |
| Gross weight | 1,440 g |
| Number of normally closed (NC) | 1 |
| Number of normally open (NO) | 1 |
| B10DNormally-closed contact (NC) | 2,000,000 Operations |
| Roller material | Brass |
| Mechanical life, minimum | 10,000,000 Operations |
| Contact opening | 2 x 6 mm |
| Actuation direction | each time 60° right-hand side and left-hand side rotation |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, minimum | 1.5 mm² |
| Cable section, maximum | 2.5 mm² |
| Length of sensor | 63 mm |
| Width of sensor | 106 mm |
| Height of sensor | 99 mm |
| Degree of protection | IP65 |
| Ambient temperature | -40 ... +200 °C |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 16 A |
| Utilisation category AC-15 | 4 A |
| Switching element | NO contact, NC contact |
| Switching principle | Snap action |
| Maximum switching frequency | 3,000 /h |
| Material of the contacts, electrical | AgSn0 |
IndMALL Automation Dealing offers Schmersal Belt Alignment Switch M. 441-11Y-T-M20 Item No: 101170473 at unbeatable prices. The Main Technical Parameters of M. 441-11Y-T-M20, 101170473 feature mechanical power with a robust working principle, the unit is built using durable Grey cast iron, galvanised, painted housing for enhanced corrosion resistance. It features 2 x 6 mm contact openings and terminations via Screw terminals M20 x 1.5 cable entry. The minimum cable section supported is 1.5 mm², with a maximum of 2.5 mm², offering flexible wiring options. The sensor dimensions are compact 63 mm in length, 106 mm in width, and 99 mm in height—making it suitable for tight installation spaces. Rated for IP65 protection, it withstands harsh environments, including ambient temperatures from -40 ... +200 °C. With a rated insulation voltage Ui of 250 VAC and integrated NO contact, NC contact switching elements, this control panel ensures dependable signal processing. Take the First Step with a Quote for your requirement of Belt Alignment Switch M. 441-11Y-T-M20. Choose us for unparalleled pricing and support over other Dealers & Distributors.
