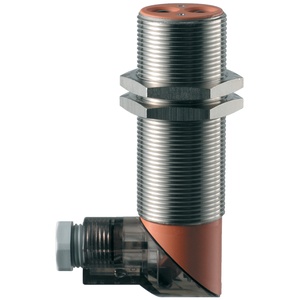

Many engineers reviewing Schmersal IFOD-10-300-10-01P also explore Schmersal Limit Switch, Schmersal Door Locking Devices and Schmersal Ifo 8 30 10 01, ensuring they donโt miss strong alternatives before finalizing procurement decisions.
Schmersal IFOD 10-300-10/01P Photo-electric Proximity Switches
The Schmersal IFOD 10-300-10/01P Photoelectric Proximity Switches (Item No: 103038718) offers a Cylinder, thread housing construction form, Screw connectiontermination, 15 ... 60 VDC rated operating voltage, NO contact or NC contact switching element. Manufactured by Schmersal under the Schmersal Photoelectric Proximity Switches. category, this model belongs to the Schmersal IF Series.
| Brand | Schmersal |
| Product Type | Photo-electric Proximity Switch |
| Model Number | IFOD 10-300-10/01P |
Schmersal IFOD 10-300-10/01P Photo-electric Proximity Switches โ Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Cylinder, thread |
| Housing material | Plastic |
| Active area | Plastic |
| Material of the nuts | Plastic |
| Material of the washer | Perbunanยฎ |
| Detection range Sd, maximum | 1,000 mm |
| Gross weight | 79 g |
| Integral system diagnostics, status | Yes |
| Number of cable wires | 3 |
| Tightening torque of nuts, maximum | 4 Nm |
| Termination | Screw connection |
| Cable section, maximum | 3 x 1.5 mmยฒ |
| Wire cross-section | 15 AWG |
| ISO thread of the sensor | M30 |
| width across flats | 36 BK |
| Length of sensor | 118 mm |
| Width of sensor | 46 mm |
| Height of sensor | 46 mm |
| Degree of protection | IP65 |
| Protection class | II |
| Type of voltage range | DC |
| Rated operating voltage | 15 ... 60 VDC |
| Operating current | 400 mA |
| Switching element | NO contact or NC contact |
| Protection circuit integrated | inductive interference protection |
| Switching frequency, approx. | 100 Hz |
| Voltage drop Ud, maximum | 2 V |
| Current at Voltage drop Ud | 0.4 A |
| Design of control elements | p-type |
| Note (Integral System Diagnostics, status ) | yellow LED |
Ask for the Pricing of Schmersal Photo-electric Proximity Switches IFOD 10-300-10/01P part no: 103038718 at unbeatable prices. Detailed Specifications of IFOD 10-300-10/01P, 103038718 feature Cylinder, thread Plastic housing, ensuring lightweight durability for industrial applications. Designed for versatile electrical compatibility, it operates at a rated voltage of 15 ... 60 VDC with a maximum operating current of 400 mA. The switching element supports both NO contact or NC contact, allowing flexible configurations. With an approximate switching frequency of 100 Hz, it ensures reliable performance in automation setups. The maximum voltage drop (Ud) is 2 V, with a current rating of 0.4 A at Ud, providing efficient electrical conductivity. The control element features an p-type design, ensuring simplified wiring for seamless integration. Termination is achieved via a Screw connection, ensuring secure and stable electrical contacts. The unit is IP65 rated, offering protection against dust and low-pressure water jets. Now's the Time to Secure a Quote for your requirement of Photo-electric Proximity Switches. We're committed to offering more favorable pricing and more responsive support than other Traders.
