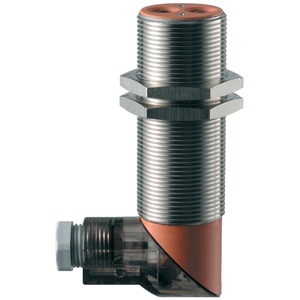

Schmersal IFO 8-30-10/01 Photo-electric Proximity Switches
The Schmersal IFO 8-30-10/01 Photoelectric Proximity Switches (Item No: 101149285) offers a Cylinder, thread housing construction form, Screw connectiontermination, 15 ... 250 VAC rated operating voltage, NO contact or NC contact switching element. Manufactured by Schmersal under the Schmersal Photoelectric Proximity Switches. category, this model belongs to the Schmersal IF Series.
| Brand | Schmersal |
| Product Type | Photo-electric Proximity Switch |
| Model Number | IFO 8-30-10/01 |
Schmersal IFO 8-30-10/01 Photo-electric Proximity Switches β Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Cylinder, thread |
| Housing material | Brass |
| Active area | Plastic |
| Material of the nuts | Brass |
| Detection range Sd, maximum | 800 mm |
| Gross weight | 140 g |
| Integral system diagnostics, status | Yes |
| Number of cable wires | 2 |
| Tightening torque of nuts, maximum | 30 Nm |
| Termination | Screw connection |
| Cable section, maximum | 2 x 1.5 mmΒ² |
| Wire cross-section | 15 AWG |
| ISO thread of the sensor | M30 |
| width across flats | 36 BK |
| Length of sensor | 118 mm |
| Width of sensor | 46 mm |
| Height of sensor | 46 mm |
| Degree of protection | IP65 |
| Protection class | II |
| Rated impulse withstand voltage Uimp | 10 kV |
| Rated supply frequency, minimum | 45 Hz |
| Rated supply frequency, maximum | 65 Hz |
| Type of voltage range | AC |
| Operating current, minimum | 10 mA |
| Rated operating voltage | 15 ... 250 VAC |
| Operating current | 500 mA |
| Switching element | NO contact or NC contact |
| Protection circuit integrated | inductive interference protection |
| Switching frequency, approx. | 10 Hz |
| Voltage drop Ud, maximum | 7 V |
| Current at Voltage drop Ud | 0.5 A |
| Design of control elements | Two-wire |
| Current leakage Ir, maximum | 3 mA |
| Note (Integral System Diagnostics, status ) | yellow LED |
Call us for Schmersal Photo-electric Proximity Switches IFO 8-30-10/01 part no: 101149285 at the best rates. Technical Attributes of IFO 8-30-10/01, 101149285 are Cylinder, thread Brass housing, ensuring lightweight durability for industrial applications. Designed for versatile electrical compatibility, it operates at a rated voltage of 15 ... 250 VAC with a maximum operating current of 500 mA. The switching element supports both NO contact or NC contact, allowing flexible configurations. With an approximate switching frequency of 10 Hz, it ensures reliable performance in automation setups. The maximum voltage drop (Ud) is 7 V, with a current rating of 0.5 A at Ud, providing efficient electrical conductivity. The control element features an Two-wire design, ensuring simplified wiring for seamless integration. Termination is achieved via a Screw connection, ensuring secure and stable electrical contacts. The unit is IP65 rated, offering protection against dust and low-pressure water jets. Unlock Exclusive Pricing with a Quote for your requirement of Photo-electric Proximity Switches. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
