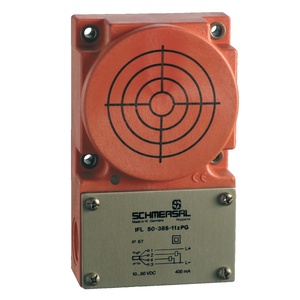

Schmersal IFL 50-385-10/01-M20 Photo-electric Proximity Switches
The Schmersal IFL 50-385-10/01-M20 Photoelectric Proximity Switches (Item No: 101173397) offers a Block housing construction form, Screw terminals M20 x 1.5termination, 15 ... 250 VAC rated operating voltage, NO contact or NC contact switching element. Manufactured by Schmersal under the Schmersal Photoelectric Proximity Switches. category, this model belongs to the Schmersal IF Series.
| Brand | Schmersal |
| Product Type | Photo-electric Proximity Switch |
| Model Number | IFL 50-385-10/01-M20 |
Schmersal IFL 50-385-10/01-M20 Photo-electric Proximity Switches – Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Block |
| Housing material | Plastic |
| Gross weight | 420 g |
| Integral system diagnostics, status | Yes |
| Number of cable wires | 2 |
| Tightening torque of nuts, maximum | - |
| Termination | Screw terminals M20 x 1.5 |
| Cable section, maximum | 2 x 1.5 mm² |
| Length of sensor | 40 mm |
| Width of sensor | 80 mm |
| Height of sensor | 135 mm |
| Degree of protection | IP67 |
| Protection class | II |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated supply frequency, minimum | 45 Hz |
| Rated supply frequency, maximum | 65 Hz |
| Type of voltage range | AC |
| Operating current, minimum | 10 mA |
| Rated operating voltage | 15 ... 250 VAC |
| Operating current | 500 mA |
| Switching element | NO contact or NC contact |
| Protection circuit integrated | inductive interference protection |
| Switching frequency, approx. | 10 Hz |
| Voltage drop Ud, maximum | 4.5 V |
| Current at Voltage drop Ud | 0.2 A |
| Design of control elements | Two-wire |
| Current leakage Ir, maximum | 1 mA |
| Note (Integral System Diagnostics, status ) | yellow LED |
Please speak to our Technical Engineer for Schmersal Inductive Proximity Switches IFL 50-385-10/01-M20 part no: 101173397 at attractive prices. Technical Specs Summary of IFL 50-385-10/01-M20, 101173397 includes Block Plastic housing, ensuring lightweight durability for industrial applications. Designed for versatile electrical compatibility, it operates at a rated voltage of 15 ... 250 VAC with a maximum operating current of 500 mA. The switching element supports both NO contact or NC contact, allowing flexible configurations. With an approximate switching frequency of 10 Hz, it ensures reliable performance in automation setups. The maximum voltage drop (Ud) is 4.5 V, with a current rating of 0.2 A at Ud, providing efficient electrical conductivity. The control element features an Two-wire design, ensuring simplified wiring for seamless integration. Termination is achieved via a Screw terminals M20 x 1.5, ensuring secure and stable electrical contacts. The unit is IP67 rated, offering protection against dust and low-pressure water jets. Match Your Needs with a Quote for your requirement of Inductive Proximity Switches. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
