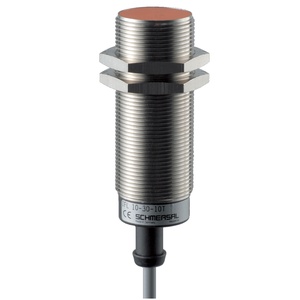

Schmersal IFL 10-30-01T Photo-electric Proximity Switches
The Schmersal IFL 10-30-01T Photoelectric Proximity Switches (Item No: 101141543) offers a Cylinder, thread housing construction form, Cable H03VV-Ftermination, 15 ... 250 VAC rated operating voltage, Opener (NC) switching element. Manufactured by Schmersal under the Schmersal Photoelectric Proximity Switches. category, this model belongs to the Schmersal IF Series.
| Brand | Schmersal |
| Product Type | Photo-electric Proximity Switch |
| Model Number | IFL 10-30-01T |
Schmersal IFL 10-30-01T Photo-electric Proximity Switches β Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Cylinder, thread |
| Housing material | Brass |
| Active area | Plastic |
| Material of the nuts | Brass |
| Gross weight | 200 g |
| Integral system diagnostics, status | Yes |
| Number of cable wires | 2 |
| Tightening torque of nuts, maximum | 30 Nm |
| Termination | Cable H03VV-F |
| Wire cross-section | 0.5 mm2 |
| ISO thread of the sensor | M30 |
| width across flats | 36 BK |
| Length of sensor | 100 mm |
| Degree of protection | IP67 |
| Protection class | II |
| Rated impulse withstand voltage Uimp | 4 kV |
| Rated supply frequency, minimum | 45 Hz |
| Rated supply frequency, maximum | 65 Hz |
| Type of voltage range | AC |
| Operating current, minimum | 10 mA |
| Rated operating voltage | 15 ... 250 VAC |
| Operating current | 500 mA |
| Switching element | Opener (NC) |
| Protection circuit integrated | inductive interference protection |
| Switching frequency, approx. | 10 Hz |
| Voltage drop Ud, maximum | 4.5 V |
| Current at Voltage drop Ud | 0.2 A |
| Design of control elements | Two-wire |
| Note (Integral System Diagnostics, status ) | yellow LED |
Talk to Our Engineer for Schmersal Inductive Proximity Switches IFL 10-30-01T part no: 101141543 with exclusive offers. Core System Specifications of IFL 10-30-01T, 101141543 are Cylinder, thread Brass housing, ensuring lightweight durability for industrial applications. Designed for versatile electrical compatibility, it operates at a rated voltage of 15 ... 250 VAC with a maximum operating current of 500 mA. The switching element supports both Opener (NC), allowing flexible configurations. With an approximate switching frequency of 10 Hz, it ensures reliable performance in automation setups. The maximum voltage drop (Ud) is 4.5 V, with a current rating of 0.2 A at Ud, providing efficient electrical conductivity. The control element features an Two-wire design, ensuring simplified wiring for seamless integration. Termination is achieved via a Cable H03VV-F, ensuring secure and stable electrical contacts. The unit is IP67 rated, offering protection against dust and low-pressure water jets. Don't Miss Out on a Quote for your requirement of Inductive Proximity Switches. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
