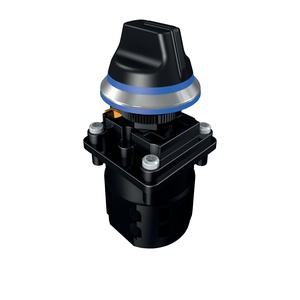

Schmersal HWSE12-BL-SW Command and Signalling Devices
The Schmersal HWSE12-BL-SW Command and Signalling Devices offers a 22.3 mm mounting diameter, 6 mmthickness of the front panel, maximum, IP67IP69K degree of protection, 114 mm mounting depth. Manufactured by Schmersal under the Schmersal Command and Signalling Devices. category, this model belongs to the Schmersal WK Series.
| Brand | Schmersal |
| Product Type | Command and Signalling Devices |
| Model Number | HWSE12-BL-SW |
Schmersal HWSE12-BL-SW Command and Signalling Devices β Technical Specifications
| Specification | Value |
|---|---|
| Material of the front ring | stainless steel |
| Colour of the front ring | Silver |
| Colour of the bellows | Blue |
| Gross weight | 269 g |
| Number of switch positions | 12 |
| Mechanical life, minimum | 1,000,000 Operations |
| Mounting | central nut |
| Termination | Screw terminals |
| Cable section, minimum | 1 mmΓΒ², rigid1 mmΓΒ², flexible |
| Cable section, maximum | 2.5 mmΓΒ², rigid2.5 mmΓΒ², flexible |
| Mounting depth | 114 mm |
| Mounting diameter | 22.3 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Thickness of the front panel, maximum | 6 mm |
| Degree of protection | IP67IP69K |
| Ambient temperature | #ERROR! |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 20 A |
| Switching principle | Slow action |
