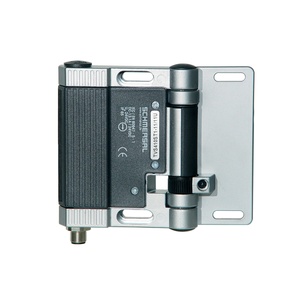

Schmersal HINGED SAFETY SWITCHES TVS410ST1-11/01AN Safety Switch
The Schmersal HINGED SAFETY SWITCHES TVS410ST1-11/01AN Safety Switch (Item No: 101184463) offers a Connector plug M12, 8-pole, bottomConnector M12 termination, IP65degree of protection, 250 VAC rated insulation voltage Ui, NO contact, NC contact switching element. Manufactured by Schmersal under the Schmersal Safety Switch. category, this model belongs to the Schmersal TE Series.
| Brand | Schmersal |
| Product Type | Safety Switch |
| Model Number | HINGED SAFETY SWITCHES TVS410ST1-11/01AN |
Schmersal HINGED SAFETY SWITCHES TVS410ST1-11/01AN Safety Switch β Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 640 g |
| Housing material | Metal, zinc die-cast |
| Number of safety contacts | 2 |
| Standards | BG-GS-ET-15EN ISO 13849-1EN IEC 60947-5-1 |
| Mission time | 20 Year(s) |
| Mechanical life, minimum | 1,000,000 Operations |
| Positive break angle | 5 Β° |
| Termination | Connector plug M12, 8-pole, bottomConnector M12 |
| Length of sensor | 21.5 mm |
| Width of sensor | 141 mm |
| Height of sensor | 115 mm |
| Degree of protection | IP65 |
| Ambient temperature | -25 ... +65 Β°C |
| Rated insulation voltage Ui | 250 VAC |
| Rated impulse withstand voltage Uimp | 2.5 kV |
| Thermal test current | 2.5 A |
| Utilisation category AC-15 | 4 A |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,200 /h |
| Material of the contacts, electrical | Silver-nickel alloy 10 |
| Number of auxiliary contacts | 2 |
| Colour of the housing | Black |
Obtain a Quote for Schmersal Hinge safety switch HINGED SAFETY SWITCHES TVS410ST1-11/01AN Item No: 101184463 at economical prices. Specifications Overview for HINGED SAFETY SWITCHES TVS410ST1-11/01AN, 101184463 reveals Connector plug M12, 8-pole, bottomConnector M12 cable entry, supporting cable sections from to . The sensor has a length of 21.5 mm, width of 141 mm, and height of 115 mm, designed to fit seamlessly into industrial hinge systems. With an IP65 degree of protection, it resists dust and low-pressure water, making it ideal for harsh environments. It operates in ambient temperatures from -25 ... +65 Β°C. Electrical ratings include a rated insulation voltage (Ui) of 250 VAC and a rated impulse withstand voltage (Uimp) of 2.5 kV. The switch supports a thermal test current of 2.5 A and a utilization category of AC-15 at 4 A. It uses an NO contact, NC contact switching element with an Slow action switching principle. Take the First Step with a Quote for your requirement of Hinge safety switch HINGED SAFETY SWITCHES TVS410ST1-11/01AN. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
