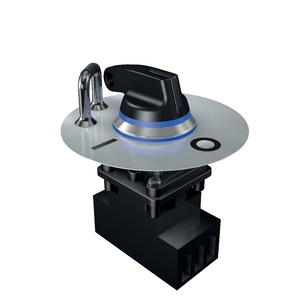

Schmersal HHS125-BL-SW-MP Command and Signalling Devices
The Schmersal HHS125-BL-SW-MP Command and Signalling Devices offers a mounting diameter, 6 mmthickness of the front panel, maximum, IP67IP69K degree of protection, 96 mm mounting depth. Manufactured by Schmersal under the Schmersal Command and Signalling Devices. category, this model belongs to the Schmersal WK Series.
| Brand | Schmersal |
| Product Type | Command and Signalling Devices |
| Model Number | HHS125-BL-SW-MP |
Schmersal HHS125-BL-SW-MP Command and Signalling Devices – Technical Specifications
| Specification | Value |
|---|---|
| Material of the front ring | stainless steel |
| Colour of the front ring | Silver |
| Colour of the bellows | Blue |
| Gross weight | 220 g |
| Number of switch positions | 1 |
| Latching position | right |
| Mechanical life, minimum | 100,000 Operations |
| Mounting | central nut |
| Termination | Screw terminals |
| Cable section, minimum | 4 mm², rigid2.5 mm², flexible |
| Cable section, maximum | 50 mm², rigid35 mm², flexible |
| Mounting depth | 96 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Thickness of the front panel, maximum | 6 mm |
| Degree of protection | IP67IP69K |
| Ambient temperature | #ERROR! |
| Rated impulse withstand voltage Uimp | 8 kV |
| Thermal test current | 125 A |
| Switching principle | Slow action |
