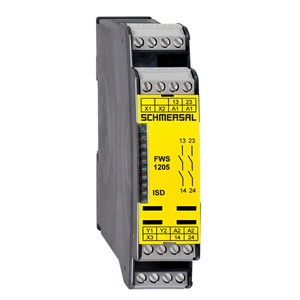

Schmersal FWS 1205 B Safe Signal Processing
The Schmersal FWS 1205 B Safe Signal Processing (Item No: 101170054) offers a 20,000,000 Operations mechanical life, minimum, 0.2 mmΒ² cable section, minimum, IP40 degree of protection of the enclosure, 24 VDC rated operating voltage. Manufactured by Schmersal under the Schmersal Safe Signal Processing. category, this model belongs to the Schmersal AES Series.
| Brand | Schmersal |
| Product Type | Safe Signal Processing |
| Model Number | FWS 1205 B |
Schmersal FWS 1205 B Safe Signal Processing β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass-fibre reinforced thermoplastic, ventilated |
| Number of LEDs | 1 |
| Number of undelayed semi-conductor outputs with signaling function | 2 |
| Number of safety contacts | 2 |
| Mechanical life, minimum | 20,000,000 Operations |
| Mounting | Snaps onto standard DIN rail to EN 60715 |
| Terminal designations | IEC/EN 60947-1 |
| Termination | rigid or flexibleScrew terminals M20 x 1.5 |
| Cable section, minimum | 0.2 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Tightening torque of Clips | 0.6 Nm |
| Width | 22.5 mm |
| Height | 100 mm |
| Depth | 121 mm |
| Degree of protection of the enclosure | IP40 |
| Degree of protection of the mounting space | IP54 |
| Degree of protection of clips or terminals | IP20 |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 ... 55 Hz, Amplitude 0.35 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated impulse withstand voltage Uimp | 4.8 kV |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Operating voltage | 24 VDC -15 % / +15 % |
| Thermal test current | 6 A |
| Rated operating voltage | 24 VDC |
| Rated AC voltage for controls, 50 Hz, minimum | 20.4 VAC |
| Rated control voltage at AC 50 Hz, maximum | 26.4 VAC |
| Rated AC voltage for controls, 60 Hz, minimum | 20.4 VAC |
| Rated control voltage at AC 60 Hz, maximum | 26.4 VAC |
| Rated AC voltage for controls at DC minimum | 20.4 VDC |
| Rated control voltage at DC, maximum | 26.4 VAC |
| Contact resistance, maximum | 0.1 Ξ© |
| Electrical data - Note (Contact resistance) | in new state |
| Material of the contacts, electrical | Ag-Ni 10 and 0.2 Β΅m gold-plated |
| Voltage, Utilisation category AC-15 | 230 VAC |
| Current, Utilisation category AC-15 | 3 A |
| Voltage, Utilisation category DC-13 | 24 VDC |
| Current, Utilisation category DC-13 | 2 A |
| Switching capacity, minimum | 10 mA |
| Switching capacity, maximum | 8 A |
| Input signal, HIGH Signal "1" | 10 β¦ 30 VDC |
| Input signal, LOW Signal "0" | 0 β¦ 2 VDC |
| Conduction resistance, maximum | 40 Ξ© |
| Switching capacity, maximum | 2 A |
Call us for Schmersal Safe Signal Processing FWS 1205 B Item No: 101170054 at the best rates. Technical Attributes of FWS 1205 B, 101170054 are housing is made of Glass-fibre reinforced thermoplastic, ventilated design, ensuring structural integrity and thermal resistance. Termination is achieved via rigid or flexibleScrew terminals M20 x 1.5, supporting cable sections from 0.2 mmΒ² to 2.5 mmΒ². The tightening torque for clips is rated at 0.6 Nm, ensuring secure electrical connections. Compact in size, the unit measures 22.5 mm in width, 100 mm in height, and 121 mm in depth. Terminal clips are rated IP20, providing basic protection against solid objects. Designed to withstand harsh conditions, the unit operates reliably in storage and transport temperatures between -25 ... +70 Β°C. It resists vibrations of 10 ... 55 Hz, Amplitude 0.35 mm and shock up to 30 g / 11 ms. The rated impulse withstanding voltage (Uimp) is 4.8 kV. Unlock Exclusive Pricing with a Quote for your requirement of Safe Signal Processing FWS 1205 B. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
