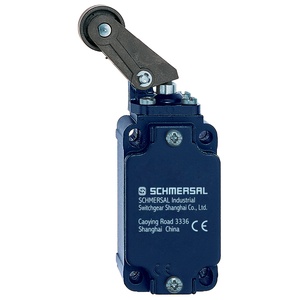

Schmersal EX-Z3K 335-02Z-3G/D Position Switches
The Schmersal EX-Z3K 335-02Z-3G/D Position Switches (Item No: 103004157) offers a 30,000,000 Operations mechanical life, minimum, Screw terminals M20 x 1.5, IP67 degree of protection, 500 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Position Switches. category, this model belongs to the Schmersal EX Series.
| Brand | Schmersal |
| Product Type | Position Switch |
| Model Number | EX-Z3K 335-02Z-3G/D |
Schmersal EX-Z3K 335-02Z-3G/D Position Switches β Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Norm construction design |
| Housing material | Aluminium |
| Housing coating material | painted |
| Gross weight | 275 g |
| Number of safety contacts | 2 |
| Mission time | 20 Year(s) |
| B10DNormally-closed contact (NC) | 20,000,000 Operations |
| Actuating element | Angle roller lever |
| Mecha Roller material | - |
| Mechanical life, minimum | 30,000,000 Operations |
| Actuating speed, minimum | - |
| Actuating speed, maximum | 0.5 m/s |
| Note (Actuating speed) | Actuating speed with actuating angle 30Β° to switch axis |
| Actuating torque, minimum | - |
| Termination | Screw terminals M20 x 1.5 |
| Cable cross-section of the cable glands, minimum | 7 mm |
| Cable cross-section of the cable glands, maximum | 12 mm |
| Cable section, minimum | 0.75 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Connection technique - Note | All indications including the conductor ferrules. |
| Wire cross-section | 13 AWG |
| Length of sensor | 38 mm |
| Width of sensor | 58.3 mm |
| Height of sensor | 121.5 mm |
| Degree of protection | IP67 |
| Ambient temperature | -20 ... +60 Β°C |
| Rated insulation voltage Ui | 500 V |
| Rated impulse withstand voltage Uimp | 6 kV |
| Thermal test current | 10 A |
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 4 A |
| Switching element | Opener (NC) |
| Switching principle | Snap action |
| Maximum switching frequency | 5,000 /h |
| Switchover time, maximum | 2 ms |
| Material of the contacts, electrical | Silver |
