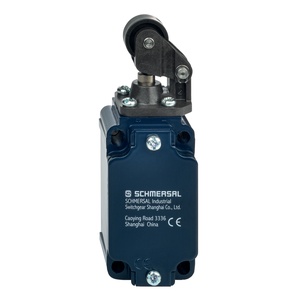

Schmersal EX-T1K 335-02Y Position Switches
The Schmersal EX-T1K 335-02Y Position Switches (Item No: 101212073) offers a 1,000,000 Operations mechanical life, minimum, Screw terminals M20 x 1.5, IP65 degree of protection, 250 VAC500 V rated insulation voltage Ui. Manufactured by Schmersal under the Schmersal Position Switches. category, this model belongs to the Schmersal EX Series.
| Brand | Schmersal |
| Product Type | Position Switch |
| Model Number | EX-T1K 335-02Y |
Schmersal EX-T1K 335-02Y Position Switches β Technical Specifications
| Specification | Value |
|---|---|
| Housing construction form | Norm construction design |
| Housing material | Metal, zinc die-cast |
| Housing coating material | painted |
| Gross weight | 320 g |
| Number of auxiliary contacts | - |
| Number of safety contacts | 2 |
| Mission time | 20 Year(s) |
| B10DNormally-closed contact (NC) | 20,000,000 Operations |
| Actuating element | Offset roller lever |
| Mecha Roller material | - |
| Mechanical life, minimum | 1,000,000 Operations |
| Actuating speed, minimum | - |
| Actuating speed, maximum | 1 m/s |
| Note (Actuating speed) | Actuating speed with actuating angle 30Β° to switch axis |
| Actuating torque, minimum | - |
| Termination | Screw terminals M20 x 1.5 |
| Cable cross-section of the cable glands, minimum | 7 mm |
| Cable cross-section of the cable glands, maximum | 12 mm |
| Cable section, minimum | 1 mmΒ² |
| Cable section, maximum | 2.5 mmΒ² |
| Connection technique - Note | All indications including the conductor ferrules. |
| Wire cross-section | 13 AWG |
| Length of sensor | 38 mm |
| Width of sensor | 40.5 mm |
| Height of sensor | 118.5 mm |
| Degree of protection | IP65 |
| Rated insulation voltage Ui | 250 VAC500 V |
| Rated impulse withstand voltage Uimp | 4 kV |
| Thermal test current | 5 A |
| Utilisation category AC-15 | 230 VAC |
| Utilisation category DC-13 | 24 VDC |
| Switching element | Opener (NC) |
| Switching principle | Slow action |
| Bounce duration, maximum | 3 ms |
| Maximum switching frequency | 1,800 /h |
| Switchover time, maximum | - |
| Material of the contacts, electrical | Silver |
