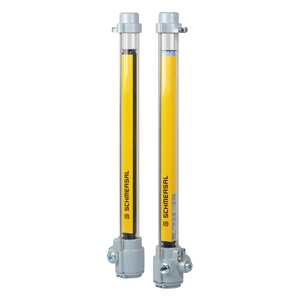

Schmersal EX-SLG440-ER-0500-02 Safety Light Grids
The Schmersal EX-SLG440-ER-0500-02 Safety Light Grids (Item No: 103047621) offers a 2 number of beams, 3 safety integrity level (SIL), suitable for applications in, 500 mm height of the protection field, 12 m range, protection field, maximum. Manufactured by Schmersal under the Schmersal Safety Light Grids. category, this model belongs to the Schmersal SLG Series.
| Brand | Schmersal |
| Product Type | Safety Light Grid |
| Model Number | EX-SLG440-ER-0500-02 |
Schmersal EX-SLG440-ER-0500-02 Safety Light Grids β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Shatterproof glass |
| Reaction time, maximum | 10 ms |
| Restart interlock (manual reset) | Yes |
| Integral system diagnostics, status | Yes |
| Integral system diagnostics | Yes |
| Number of fail-safe digital outputs | 2 |
| Number of beams | 2 |
| Safety classification - Standards | EN ISO 13849-1EN IEC 62061 |
| Category | 4 |
| PFH value | 5.14 x 10β»βΉ /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Safety type in accordance with IEC 61496-1 | 4 |
| Detection ability for test bodies at v = 1.6 m/s | 500 mm |
| Height of the protection field | 500 mm |
| Range, protection field, minimum | 0.3 m |
| Range, protection field, maximum | 12 m |
| Wave length of the laserdiode | 880 nm |
| Termination | Connector |
| Terminal connector, Recipient | Connector plug M12, 8-pole |
| Terminal, Connector, Transmitter | Connector plug M12, 4-pole |
| Width of sensor | 100 mm |
| Degree of protection | IP66 |
| Ambient temperature | -25 ... +50 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Switching voltage OSSD, HIGH signal | 24 V |
| Output current, (fail-safe output), maximum | 0.25 A |
| Design of control elements | short-circuit proof, p-type |
| Scope of delivery | Kit with 2 mounting angles |
| Recommended safety switchgear | SRB-E 301 |
| eCl@ss number, version 12.0 | 27-27-27-03 |
| eCl@ss number, version 11.0 | 27-27-27-03 |
| eCl@ss number, version 9.0 | 27-27-27-03 |
| ETIM number, version 7.0 | EC001832 |
| ETIM number, version 6.0 | EC001832 |
| Certificates | Certificates |
| Explosion protection: regulations | EN IEC 60079-0EN 60079-1EN 60079-28EN 60079-31 |
| Explosion protection zones | 121 |
| Explosion protection category | 2G2D |
| Explosion protection designation | DII 2G Ex db op is IIA T6 GbDII 2D Ex op is tb IIIC T80Β°C Db |
| Contactor control integrated | Yes |
| Beam coding available | Yes |
| Blanking function | Yes |
| 7-segment display | Yes |
| Gross weight | 3,740 g |
Ask for the Pricing of Schmersal Safety Light Grids EX-SLG440-ER-0500-02 Item No: 103047621 at unbeatable prices. Detailed Specifications of EX-SLG440-ER-0500-02, 103047621 feature Shatterproof glass housing, the system boasts a PFH value of 5.14 x 10β»βΉ /h and is rated for Safety Integrity Level (SIL) 3 applications, ensuring maximum reliability in critical operations. Designed for precision, it offers a detection ability of 500 mm for test bodies moving at 1.6 m/s. The unit features standard Connector termination, with an Connector plug M12, 8-pole for the recipient and an Connector plug M12, 4-pole for the transmitter. The compact sensor has a width of just 100 mm, allowing for seamless integration in space-constrained areas. Rated IP66, it provides excellent protection against dust and water ingress. The device operates within an ambient temperature range of -25 ... +50 Β°C and can be stored or transported in temperatures from -25 ... +70 Β°C. Now's the Time to Secure a Quote for your requirement of Safety Light Grids EX-SLG440-ER-0500-02. We're committed to offering more favorable pricing and more responsive support than other Traders.
