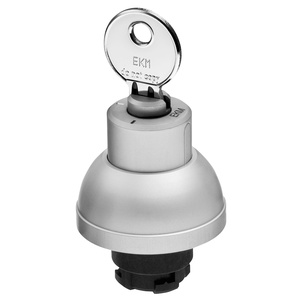

Schmersal EX-RSS21S2-SVE/104 Command And Signalling Devices
The Schmersal EX-RSS21S2-SVE/104 Command And Signalling Devices (Item No: 103015394) offers a Aluminium material of the front ring, 4 mm actuating stroke, 22.3 mm mounting diameter, 5 g resistance to vibrations. Manufactured by Schmersal under the Schmersal Command And Signalling Devices. category, this model belongs to the Schmersal EX Series.
| Brand | Schmersal |
| Product Type | Command And Signalling Device |
| Model Number | EX-RSS21S2-SVE/104 |
Schmersal EX-RSS21S2-SVE/104 Command And Signalling Devices – Technical Specifications
| Specification | Value |
|---|---|
| Design | Round |
| Material of the identification label | Stainless steel (V4A) |
| Material of the front ring | Aluminium |
| Gross weight | 170 g |
| Mission time | 20 Year(s) |
| B10DNormally-closed contact (NC) | 100,000 Operations |
| Actuating stroke | 4 mm |
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
| Resistance to vibrations | 5 g |
| Restistance to shock | <50 g (EN 60068-2-27) |
