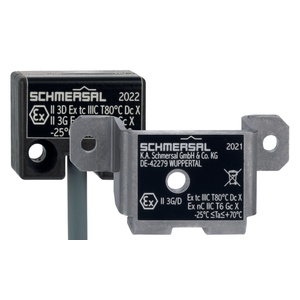

Schmersal EX-BNS 250-11Z-3GD Safety Sensor
The Schmersal EX-BNS 250-11Z-3GD Safety Sensor (Item No: 103045522) offers a 1 m length of cable, Cable termination, IP67 degree of protection, -25 ... +70 °C ambient temperature. Manufactured by Schmersal under the Schmersal Safety Sensor. category, this model belongs to the Schmersal BNS Series.
| Brand | Schmersal |
| Product Type | Safety Sensor |
| Model Number | EX-BNS 250-11Z-3GD |
Schmersal EX-BNS 250-11Z-3GD Safety Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 102 g |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Coding | Yes |
| Mission time | 20 Year(s) |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 4 mm |
| Assured switching distance "OFF" Sar | 14 mm |
| Length of cable | 1 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
Talk to Our Engineer for Schmersal Safety Sensors EX-BNS 250-11Z-3GD 6,5M Item No: 103045520 with exclusive offers. Core System Specifications of EX-BNS 250-11Z-3GD 6,5M, 103045520 are not flush design, the sensor ensures reliable detection with an assured switching distance ON (Sao) of 4 mm and OFF (Sar) of 14 mm. Built with robust Glass-fibre, reinforced thermoplastic, the housing offers excellent durability and resistance to harsh conditions. The sensor includes an 1 m, Cable, enabling quick and secure termination. With a compact sensor length of just 13 mm, it easily fits into tight spaces while maintaining optimal functionality. Rated IP67, the unit provides complete protection against dust and strong water jets. It is engineered to withstand vibrations ranging from 10 … 55 Hz, amplitude 1 mm, and shock resistance of up to 30 g / 11 ms. Don't Miss Out on a Quote for your requirement of Safety Sensors EX-BNS 250-11Z-3GD 6,5M. Count on us for more economical pricing and more reliable support than other Dealers & Distributors.
