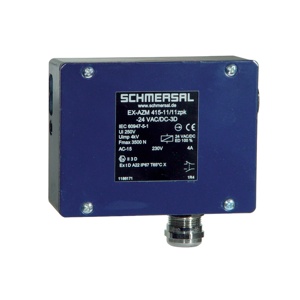

EX-AZM 415-11/11ZPK 24VAC/DC-3D: 101186171 - Schmersal 2 Safety Contacts Solenoid Interlock
Technical Specifications of Schmersal 2 Safety Contacts Solenoid Interlock EX-AZM 415-11/11ZPK 24VAC/DC-3D 101186171:
| Working Principle | electromechanical |
| Mounting | - |
| Termination | Screw terminals M20 x 1.5 |
| Switching Element | NO contact, NC contact |
Schmersal 2 Safety Contacts Solenoid Interlock, EX-AZM 415-11/11ZPK 24VAC/DC-3D, 101186171 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | electromechanical |
| Housing material | Aluminium |
| Number of safety contacts | 2 |
| Impact energy, maximum | 4 J |
| Energy impact (protective case), maximum | - |
| Holding force | 3,500 N |
| Latching force | 80 N-400 N |
| Positive break travel | 5 mm |
| Positive break force, minimum | 15 N |
| Actuating speed, maximum | 1 m/s |
| Mounting | - |
| Type of the fixing screws | - |
| Type of the screw head | - |
| Tightening torque of the fastening screws for the housing cover, minimum | - |
| Tightening torque of the fastening screws for the housing cover, maximum | - |
| Tightening torque of the cable gland | - |
| Termination | Screw terminals M20 x 1.5 |
| Cable cross-section of the cable glands, minimum | 7 mm |
| Cable cross-section of the cable glands, maximum | 12 mm |
| Cable section, minimum | 0.75 mm² |
| Cable section, maximum | 2.5 mm² |
| Length of sensor | 46.5 mm |
| Width of sensor | 130 mm |
| Height of sensor | 100 mm |
| Degree of protection | IP67 |
| Ambient temperature | -10 ... +50 °C |
| Electrical power consumption, maximum | 10 W |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | - |
| Material of the contacts, electrical | Silver |
| Gross weight | 925 g |
Obtain a Quote for Schmersal 2 Safety Contacts Solenoid Interlock EX-AZM 415-11/11ZPK 24VAC/DC-3D part no: 101186171 at economical prices. Specifications Overview for EX-AZM 415-11/11ZPK 24VAC/DC-3D, 101186171 reveals electromechanical Working principle, designed with a housing made of Aluminium. The device features a latching force of 80 N-400 N ensuring secure and reliable operation in hazardous environments. It is mounted using - and utilizes the Screw terminals M20 x 1.5. The cable section ranges from 0.75 mm² to 2.5 mm² accommodating various installation needs. The sensor consumes a maximum of 10 W of electrical power, with an NO contact, NC contact switching element and a Slow action switching principle. It supports a maximum switching frequency of - making it suitable for demanding industrial applications. The device is rated IP67. Take the First Step with a Quote for your requirement of Schmersal 2 Safety Contacts Solenoid Interlock. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
