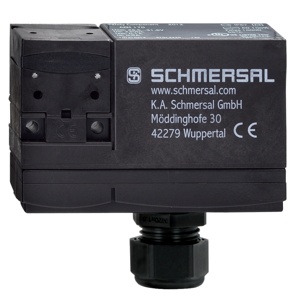

EX-AZM 170-11ZRKA 24VAC/DC-3G/D: 101188908 - Schmersal Manual Release Solenoid Interlock
Technical Specifications of Schmersal Manual Release Solenoid Interlock EX-AZM 170-11ZRKA 24VAC/DC-3G/D 101188908:
| Working Principle | electromechanical |
| Mounting | Screws |
| Termination | IDC method of termination |
| Switching Element | NO contact, NC contact |
Schmersal Manual Release Solenoid Interlock, EX-AZM 170-11ZRKA 24VAC/DC-3G/D, 101188908 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | electromechanical |
| Housing material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
| Number of safety contacts | 1 |
| Impact energy, maximum | 1 J |
| Energy impact (protective case), maximum | 7 J |
| Holding force | 1,000 N |
| Latching force | 30 N |
| Positive break travel | 11 mm |
| Positive break force, minimum | 8.5 N |
| Actuating speed, maximum | 1 m/s |
| Mounting | Screws |
| Type of the screw head | Flat head screw |
| Tightening torque of the fastening screws for the housing cover, minimum | 0.4 Nm |
| Tightening torque of the fastening screws for the housing cover, maximum | 0.5 Nm |
| Tightening torque of the cable gland | 4.5 Nm |
| Termination | IDC method of termination |
| Cable cross-section of the cable glands, minimum | 6.5 mm |
| Cable cross-section of the cable glands, maximum | 12 mm |
| Cable section, minimum | 2 x 1.0 mm², flexible |
| Cable section, maximum | 1 x 1 mm², flexible |
| Length of sensor | 30 mm |
| Width of sensor | 90 mm |
| Height of sensor | 84 mm |
| Degree of protection | IP67 |
| Ambient temperature | -15 ... +45 °C |
| Electrical power consumption, maximum | 10 W |
| Switching element | NO contact, NC contact |
| Switching principle | Slow action |
| Maximum switching frequency | 1,000 /h |
| Material of the contacts, electrical | Silver |
| Gross weight | 290 g |
Mail Us for your needs in Schmersal Manual Release Solenoid Interlock EX-AZM 170-11ZRKA 24VAC/DC-3G/D part no: 101188908 with budget-friendly prices. The Main Technical Parameters of EX-AZM 170-11ZRKA 24VAC/DC-3G/D, 101188908 inludce electromechanical Working principle, designed with a housing made of Plastic, glass-fibre reinforced thermoplastic, self-extinguishing. The device features a latching force of 30 N ensuring secure and reliable operation in hazardous environments. It is mounted using Screws and utilizes the IDC method of termination. The cable section ranges from 2 x 1.0 mm², flexible to 1 x 1 mm², flexible accommodating various installation needs. The sensor consumes a maximum of 10 W of electrical power, with an NO contact, NC contact switching element and a Slow action switching principle. It supports a maximum switching frequency of 1,000 /h making it suitable for demanding industrial applications. The device is rated IP67. Customize Your Experience with a Quote for your requirement of Schmersal Manual Release Solenoid Interlock. Experience the difference with our competitive pricing and superior support over other Suppliers.
