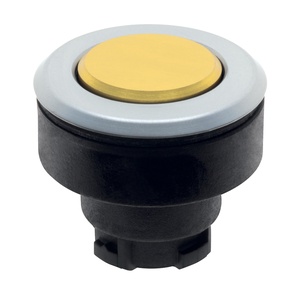

Schmersal EDT.VGB Command and Signalling Devices
The Schmersal EDT.VGB Command and Signalling Devices offers a 30.5 mm mounting diameter, 6 mmthickness of the front panel, maximum, IP65 degree of protection, 40 x 50 mm spacing. Manufactured by Schmersal under the Schmersal Command and Signalling Devices. category, this model belongs to the Schmersal WK Series.
| Brand | Schmersal |
| Product Type | Command and Signalling Devices |
| Model Number | EDT.VGB |
Schmersal EDT.VGB Command and Signalling Devices β Technical Specifications
| Specification | Value |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Material of the front ring | Aluminium anodised |
| Colour of the front ring | Silver |
| Gross weight | 45 g |
| Probing possible | Yes |
| Mechanical life, minimum | 1,000,000 Operations |
| Actuating force, approx. | 1.5 N |
| Mounting | Mounting flange EFM |
| Mounting diameter | 30.5 mm |
| Thickness, of the front panel, minimum | 1 mm |
| Thickness of the front panel, maximum | 6 mm |
| Spacing | 40 x 50 mm |
| Degree of protection | IP65 |
| Ambient temperature | 25 ... +75 ΓΒ°C |
| Resistance to vibrations | 5 g |
| Restistance to shock | <50 g (EN 60068 2 27) |
