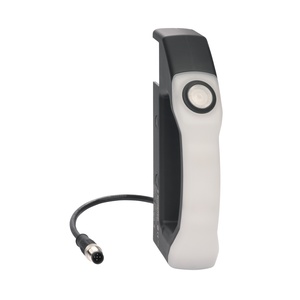

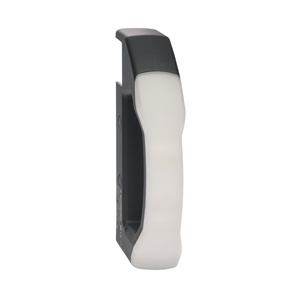

Schmersal EDLWS Door Handle System
The Schmersal EDLWS Door Handle System (Item No: 30) offers a central nut mounting, IP65 degree of protection, 22.3 mm mounting diameter, 1.5 mm thickness, of the front panel, minimum. Manufactured by Schmersal under the Schmersal Door Handle System. category, this model belongs to the Schmersal UHS Series.
| Brand | Schmersal |
| Product Type | Door handle system |
| Model Number | EDLWS |
Schmersal EDLWS Door Handle System – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 33 g |
| Illuminable | Yes |
| Actuating stroke | 5 mm |
| Tightening torque of the screw | 0.6 Nm |
| Height | 14 mm |
| Degree of protection | IP65 |
| Restistance to shock | 30 g / 18 ms |
| Maximum switching frequency | 1,200 /h |
| Versions | Front plate mountingIlluminated pushbutton |
| Design | RoundTactile |
| Sealing type | MembraneLip gasketsForm seals |
| Material of the operators | Plastic |
| Material of the front ring | Aluminium |
| Colour of the operating element | White |
| Colour of the front ring | Silver |
| Number of contact elements, maximum | Number of contact elements, maximum |
| Unlocking | without |
| Mechanical life, minimum | 1,000,000 Operations |
| Actuating force, approx. | 1.5 N |
| Mounting | central nut |
| Diameter total | 29.5 mm |
| Height of touch surface | 0.5 mm |
| Diameter of touch surface | 20 mm |
| Mounting diameter | 22.3 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Thickness of the front panel, maximum | 6 mm |
| Spacing | 40 x 50 mm |
| Ambient temperature | 25 ... +75 °C |
| Resistant to vibration | 20 g / 10 ... 150 Hz |
Give Us a Call for Schmersal Door Handle System EDLWS Item No: 101006406 at the lowest pricing. In-depth Technical Analysis of EDLWS, 101006406 feature designed in a RoundTactile form, this system ensures comfortable and reliable operation. The operating elements are made of high-quality Plastic, finished in a clean White color for visibility and aesthetics. The DHS system uses a central nut for secure mounting, suitable for applications where stability and quick installation are essential. It fits perfectly into panels with a mounting diameter of 22.3 mm and supports front panel thicknesses ranging from 1.5 mm to 6 mm. Engineered for demanding environments, it operates reliably in ambient temperatures from 25 ... +75 °C. Whether for machinery or control panels, the DHS system adds both functionality and safety. Elevate Your Project with a Quote for your requirement of Door Handle System EDLWS. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
