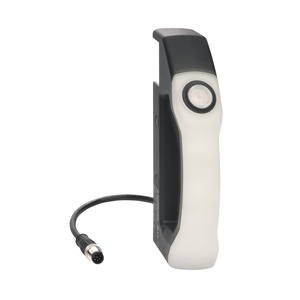

Schmersal DHS-U1-BKWH-LST8-0.25-RGB-LT Door Handle System
The Schmersal DHS-U1-BKWH-LST8-0.25-RGB-LT Door Handle System (Item No: ) offers a Connecting cable with M12 connector, straight, 8 pole termination, IP66IP67 degree of protection, 150 mA operating current, 32 VDC rated insulation voltage Ui Manufactured by Schmersal under the Schmersal Door Handle System. category, this model belongs to the Schmersal UHS Series.
| Brand | Schmersal |
| Product Type | Door handle system |
| Model Number | DHS-U1-BKWH-LST8-0.25-RGB-LT |
Schmersal DHS-U1-BKWH-LST8-0.25-RGB-LT Door Handle System β Technical Specifications
| Specification | Value |
|---|---|
| Housing material | Glass fibre, reinforced thermoplastic |
| Material of the handle | translucent PMMA |
| Gross weight | 287 g |
| Material of the holder | Glass fibre, reinforced thermoplastic |
| Colour of the illuminated push button calotte | Colour of the illuminated push button calotte |
| Idle assignable pushbutton | Yes |
| Illuminable | Yes |
| Mechanical life, Command devices | 1,000,000 Operations |
| Actuating stroke | 1 mm |
| Actuating force, maximum | 10 N |
| Note Bounce duration | Bounce duration at an Actuating speed of 100mm/s |
| Type of the fixing screws | 2x M6 |
| Tightening torque of the screw | 3.5 Nm |
| Typical actuating force of the push button | Typical actuating force of the push button |
| Type of mounting screws for the handle body | 2x Torx Plus T20x25 |
| Tightening torque of mounting screws for the handle body | 2.5 Nm |
| Length of cable | 0.25 m |
| Termination | Connecting cable with M12 connector, straight, 8 pole |
| Cable diameter | 5.5 mm |
| Bending radius (fixed) | 5 x ΓΛ cable |
| Bending radius (repeated) | 10 x ΓΛ cable |
| Material of the Cable mantle | PUR |
| Length | 202 mm |
| Width | 40 mm |
| Height | 84 mm |
| Degree of protection | IP66IP67 |
| Relative humidity, maximum | 93% |
| Note (Relative humidity) | non condensingnon icing |
| Resistance to vibrations | 10 Γ’β¬Β¦ 150 Hz, amplitude 0.35 mm (EN 60947 5 2) |
| Restistance to shock | 30 g / 11 ms (EN 60947 5 2) |
| Protection class | III |
| Permissible installation altitude above sea level, maximum | 3,000 m |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Ambient conditions Insulation values Degree of pollution | 3 |
| Current consumption at 24V | 5 mA |
| Current consumption inidcator lamp | 30 mA |
| Rated operating voltage | 24 VDC |
| Operating current | 150 mA |
| Required rated short circuit current | 100 A |
| Utilisation category DC 12 | 0.03 A |
| Utilisation category DC 13 | 0.03 A |
| External wire and device fuse rating | 2 A gG |
| Inputs, Switching thresholds | Γ’Λβ3 V Γ’β¬Β¦ 5 V (Low)11 V Γ’β¬Β¦ 30 V (High) |
| Bounce duration, maximum | 2 ms |
| Maximum switching frequency | 1,000 /h |
IndMALL Automation Dealing offers Schmersal Door Handle System DHS-U1-BKWH-LST8-0.25-RGB-LT Item No: 103053677 at unbeatable prices. The Main Technical Parameters of DHS-U1-BKWH-LST8-0.25-RGB-LT, 103053677 feature housing made of Glass fibre, reinforced thermoplastic, paired with an translucent PMMA handle for enhanced visibility and durability. It is secured using 2x M6 fixing screws with a recommended tightening torque of 3.5 Nm, ensuring stable installation. Termination is handled via a straight Connecting cable with M12 connector, straight, 8 pole configuration, integrated into a flexible connecting cable. The cable has a diameter of 5.5 mm and is jacketed with high-quality PUR material for superior wear resistance. The compact housing measures 202 mm in length, 40 mm in width, and 84 mm in height. It is rated IP66IP67, offering strong protection against dust and water. The unit operates at 24 VDC with a current draw of 150 mA. Take the First Step with a Quote for your requirement of Door Handle System DHS-U1-BKWH-LST8-0.25-RGB-LT. Choose us for unparalleled pricing and support over other Dealers & Distributors.
