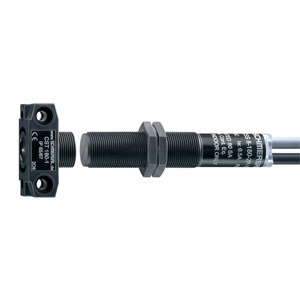

CSS 8-180-2P+D-E-LST: 101169553 - Schmersal Contact Free Electronic Safety Sensors
Technical Specifications of Schmersal Contact Free Electronic Safety Sensors CSS 8-180-2P+D-E-LST 101169553:
| Working Principle | inductive |
| PFH value | 2.50 x 10โปโน /h |
| Termination | Connector M12, 5-pole, A-coded |
| Terminal connector, Output | M12 connector, 5 pole |
Schmersal Contact Free Electronic Safety Sensors, CSS 8-180-2P+D-E-LST, 101169553 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | inductive |
| Housing construction form | Cylinder, thread |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Active area | Glass-fibre, reinforced thermoplastic |
| Material of the nuts | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 30 ms |
| Duration of risk, maximum | 30 ms |
| Number of fail-safe digital outputs | 2 |
| Number of series-wiring of sensors | 16 |
| PFH value | 2.50 x 10โปโน /h |
| Safety Integrity Level (SIL), suitable for applications in | 3 |
| Mission time | 20 Year(s) |
| Tightening torque of nuts, maximum | 3 Nm |
| Switch distance, typical | 8 mm |
| Hysteresis (Switching distance), maximum | 0.7 mm |
| Repeat accuracy R | 0.2 mm |
| Length of cable | 2 m |
| Termination | Connector M12, 5-pole, A-coded |
| Terminal connector, Output | M12 connector, 5 pole |
| ISO thread of the sensor | M18 |
| width across flats | 24 BK |
| Length of sensor | 92 mm |
| Degree of protection | IP65, IP67 |
| Ambient temperature | -25 ... +60 ยฐC |
| Storage and transport temperature | -25 ... +85 ยฐC |
| Resistance to vibrations | 10 โฆ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Rated operating voltage | 24 VDC |
| Operating current | 1,000 mA |
| Switching frequency, approx. | 3 Hz |
| Rated operating current (safety outputs) | 500 mA |
| Output current, (fail-safe output), maximum | 0.5 A |
| Design of control elements | p-type |
| Gross weight | 145 g |
Call us for Schmersal Contact Free Electronic Safety Sensors CSS 8-180-2P+D-E-LST part no: 101169553 at the best rates. Technical Attributes of CSS 8-180-2P+D-E-LST, 101169553 are inductive Working principle with a Cylinder, thread housing made from Glass-fibre, reinforced thermoplastic ensuring durability and reliability. This sensor boasts a quick reaction time of 30 ms and a PFH value of 2.50 x 10โปโน /h providing exceptional safety and efficiency. It features a maximum hysteresis (switching distance) of 0.7 mm and comes with a 2 m long Connector M12, 5-pole, A-coded for easy installation. The termination is via a M12 connector, 5 pole terminal connector, and it uses an M18 ISO thread for secure mounting. The sensor operates at a rated voltage of 24 VDC with a maximum operating current of 1,000 mA supporting a switching frequency of approximately 3 Hz. Its IP65, IP67 ratings ensure reliable protection. Unlock Exclusive Pricing with a Quote for your requirement of Schmersal Contact Free Electronic Safety Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
