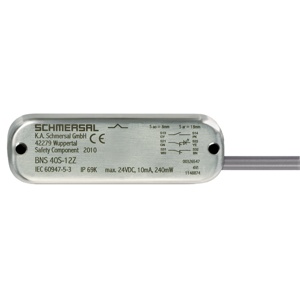

BNS 40S-12Z 3,0M: 103000650 - Schmersal Schmersal Magnetic Drive Safety Sensors
Technical Specifications of Schmersal Magnetic Drive Safety Sensors BNS 40S-12Z 3,0M 103000650:
| Working Principle | Magnetic drive |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Termination | Cable |
Schmersal Schmersal Magnetic Drive Safety Sensors, BNS 40S-12Z 3,0M, 103000650 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Stainless steel (V4A) |
| Number of normally closed (NC) | 2 |
| Number of normally open (NO) | 1 |
| Number of cable wires | 6 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 8 mm |
| Assured switching distance "OFF" Sar | 18 mm |
| Length of cable | 3 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | LiYY |
| Length of sensor | 14.5 mm |
| Width of sensor | 88 mm |
| Height of sensor | 27 mm |
| Degree of protection | IP69 |
| Ambient temperature | -25 ... +80 Β°C |
| Storage and transport temperature | -25 ... +80 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching current, maximum | 0.25 A |
| Switching capacity, maximum | 3 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 250 g |
Ask for the Pricing of Schmersal Magnetic Drive Safety Sensors BNS 40S-12Z 3,0M part no: 103000650 at unbeatable prices. Detailed Specifications of BNS 40S-12Z 3,0M, 103000650 feature Magnetic drive working principle, housed in high-quality Stainless steel (V4A) material, ensuring durability in even the harshest environments. The sensor features an Magnet as the actuating element, providing consistent performance. With an assured switching distance 8 mm and 18 mm it offers reliable detection and safety assurance. The sensor comes with a 3 m and Cable and secure termination, supporting a maximum switching current of 0.25 A and a switching frequency of 5 Hz. It is rated IP69 making it highly resistant to dust and water, suitable for heavy-duty applications. The gross weight of 250 g. Now's the Time to Secure a Quote for your requirement of Schmersal Magnetic Drive Safety Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
