Schmersal BNS 36 STG-AS-R Safety Sensor
The Schmersal BNS 36 STG-AS-R Safety Sensor (Item No: 101194956) offers a 1.24 x 10⁻⁸ /h PFH value, Connecting cable with M12 connector, straight, 4-pole termination, IP67 degree of protection, -25 ... +60 °C ambient temperature. Manufactured by Schmersal under the Schmersal Safety Sensor. category, this model belongs to the Schmersal BNS Series.
| Brand | Schmersal |
| Product Type | Safety Sensor |
| Model Number | BNS 36 STG-AS-R |
Schmersal BNS 36 STG-AS-R Safety Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 110 g |
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Coding | Yes |
| Integral system diagnostics, status | Yes |
| Category | 4 |
| PFH value | 1.24 x 10⁻⁸ /h |
| Mission time | 20 Year(s) |
| Actuating element | Magnet |
| Door hinge | Right |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 7 mm |
| Assured switching distance "OFF" Sar | 17 mm |
| Length of cable | 2 m |
| Termination | Connecting cable with M12 connector, straight, 4-pole |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | LSYY |
| Length of sensor | 13 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +60 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Protection class | - |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated operating voltage | 18 ... 31.6 VDC (Protection against polarity reversal) |

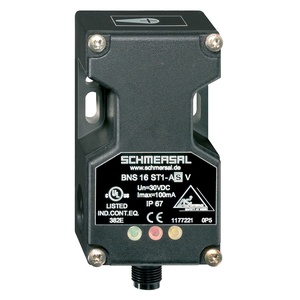

IndMALL Automation Dealing offers Schmersal Safety Sensors BNS 16 ST1-AS V Item No: 101177221 at unbeatable prices. The Main Technical Parameters of BNS 16 ST1-AS V, 101177221 feature quasi-flush design, the sensor ensures reliable detection with an assured switching distance ON (Sao) of 7 mm and OFF (Sar) of 17 mm. Built with robust Glass-fibre, reinforced thermoplastic, the housing offers excellent durability and resistance to harsh conditions. The sensor includes an 2 m, Connecting cable with M12 connector, straight, 4-pole, enabling quick and secure termination. With a compact sensor length of just 13 mm, it easily fits into tight spaces while maintaining optimal functionality. Rated IP67, the unit provides complete protection against dust and strong water jets. It is engineered to withstand vibrations ranging from 10 … 55 Hz, amplitude 1 mm, and shock resistance of up to 30 g / 11 ms. Take the First Step with a Quote for your requirement of Safety Sensors BNS 16 ST1-AS V. Choose us for unparalleled pricing and support over other Dealers & Distributors.
