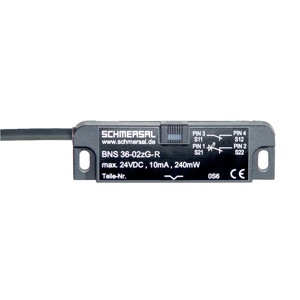

BNS 36-02Z-R 5,0M: 101208351 - Schmersal Cable Type Magnetic Safety Sensors
Technical Specifications of Schmersal Cable Type Magnetic Safety Sensors BNS 36-02Z-R 5,0M 101208351:
| Working principle | Magnetic drive |
| Length of cable | 5 m |
| Termination | Cable |
| Degree of protection | IP67 |
Schmersal Cable Type Magnetic Safety Sensors, BNS 36-02Z-R 5,0M, 101208351 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Number of cable wires | 4 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Length of cable | 5 m |
| Termination | Cable |
| Wire cross-section | 30 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 2 NC contact |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 180 g |
Give Us a Call for Schmersal Cable Type Magnetic Safety Sensors BNS 36-02Z-R 5,0M part no: 101208351 at the lowest pricing. In-depth Technical Analysis of BNS 36-02Z-R 5,0M, 101208351 feature Magnetic drive Working principle. The sensor is housed in a durable Glass-fibre, reinforced thermoplastic material, ensuring long-lasting performance even in demanding environments. It features a reliable Magnet as the actuating element, making it ideal for various safety applications. The sensor comes with a 5 m and Cable for easy installation and connectivity. The termination is secure, ensuring stable performance over time. With current capacity of 0.4 A the sensor supports a switching frequency of up to 5 Hz making it highly efficient for safety-critical operations. Rated with an IP67 degree of protection. Elevate Your Project with a Quote for your requirement of Schmersal Cable Type Magnetic Safety Sensors. Our promise: More affordable pricing and more personalized support than other Distributors & Dealers.
