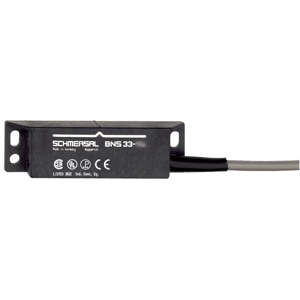

BNS 33-02Z-2516: 101181839 - Schmersal Schmersal 1 Meter Cable Safety Sensors
Technical Specifications of Schmersal 1 Meter Cable Safety Sensors BNS 33-02Z-2516 101181839:
| Working principle | Magnetic drive |
| Length of cable | 1 m |
| Degree of protection | IP67 |
Schmersal Schmersal 1 Meter Cable Safety Sensors, BNS 33-02Z-2516, 101181839 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm, 8 mm |
| Assured switching distance "OFF" Sar | 15 mm, 18 mm |
| Length of cable | 1 m |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 °C |
| Storage and transport temperature | -25 ... +70 °C |
| Resistance to vibrations | 10 … 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 2 NC contact |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 50 g |
Obtain a Quote for Schmersal 1 Meter Cable Safety Sensors BNS 33-02Z-2516 part no: 101181839 at economical prices. Specifications Overview for BNS 33-02Z-2516, 101181839 reveals Magnetic drive principle, with housing constructed from durable Glass-fibre, reinforced thermoplastic ensuring long-lasting reliability. The sensor features a Magnet as the actuating element, with an assured switching distance (Sao) of 5 mm, 8 mm and (Sar) of 15 mm, 18 mm, providing precise detection capabilities. It comes with a 1 m and terminated with a robust PVC mantle, designed for flexibility and resistance to wear. The sensor supports a maximum switching current of 0.4 A with a switching frequency of up to 5 Hz making it ideal for dynamic and fast-paced applications. This sensor is IP67 rated, offering superior protection. Take the First Step with a Quote for your requirement of Schmersal 1 Meter Cable Safety Sensors. Our commitment to better pricing and exceptional support sets us apart from other Competitors.
