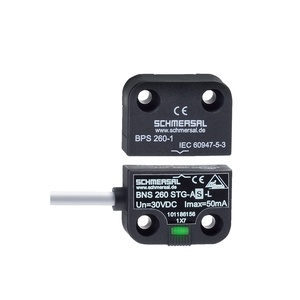

Schmersal BNS 260 STG-AS-L Safety Sensor
The Schmersal BNS 260 STG-AS-L Safety Sensor (Item No: 101186156) offers a 6.21 x 10β»βΉ /h PFH value, Connecting cable with M12 connector, straight, 4-pole termination, IP67 degree of protection, -25 ... +60 Β°C ambient temperature. Manufactured by Schmersal under the Schmersal Safety Sensor. category, this model belongs to the Schmersal BNS Series.
| Brand | Schmersal |
| Product Type | Safety Sensor |
| Model Number | BNS 260 STG-AS-L |
Schmersal BNS 260 STG-AS-L Safety Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Gross weight | 104 g |
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | quasi-flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Reaction time, maximum | 100 ms |
| Coding | Yes |
| Integral system diagnostics, status | Yes |
| Category | 4 |
| PFH value | 6.21 x 10β»βΉ /h |
| Mission time | 20 Year(s) |
| Actuating element | Magnet |
| Door hinge | Left |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | 2 m |
| Termination | Connecting cable with M12 connector, straight, 4-pole |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | LSYY |
| Length of sensor | 13 mm |
| Height of sensor | 26 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +60 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Protection class | II |
| Rated insulation voltage Ui | 32 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated operating voltage | 18 ... 31.6 VDC (Protection against polarity reversal) |
