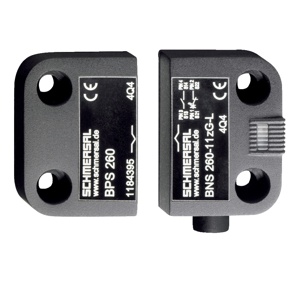

BNS 260-11Z-R 10,0M: 101208394 - Schmersal 36mm Height Magnetic Safety Sensors
Technical Specifications of 36mm Height Magnetic Safety Sensors BNS 260-11Z-R 10,0M 101208394:
| Working principle | Magnetic drive |
| Length of cable | 10 m |
| Termination | Cable |
| Degree of Protection | IP67 |
Schmersal 36mm Height Magnetic Safety Sensors, BNS 260-11Z-R 10,0M, 101208394 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | Quasi Flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 1 |
| Number of safety contacts | 2 |
| Number of cable wires | 4 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Length of cable | 10 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Width of sensor | 26 mm |
| Height of sensor | 36 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 50 VAC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Switching voltage, maximum | 75 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 VA |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 374 g |
Call us for 36mm Height Magnetic Safety Sensors BNS 260-11Z-R 10,0M part no: 101208394 at the best rates. Technical Attributes of BNS 260-11Z-R 10,0M, 101208394 are Magnetic drive principle, encased in a robust Glass-fibre, reinforced thermoplastic housing, ensuring durability and reliability. The actuating element Magnet is optimized for seamless operation, with an assured switching distance of 5 mm and of 15 mm providing accurate and dependable performance. Equipped with a 10 m cable for flexible installation, the sensor features a reliable Cable termination method, ensuring a secure connection. The sensors support a maximum switching voltage of 75 VDC and a current of 0.4 A capable of handling a switching frequency of up to 5 Hz. Rated with an IP67 degree of protection. Unlock Exclusive Pricing with a Quote for your requirement of 36mm Height Magnetic Safety Sensors. Trust in our ability to provide more advantageous pricing and dedicated support beyond other other Dealers.
