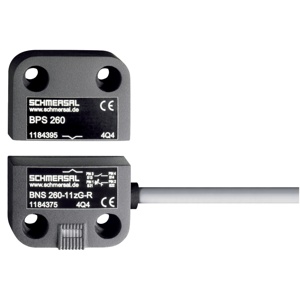

BNS 260-11/01ZG-ST-L: 101184384 - Schmersal Left Door Hinge Magnetic Safety Sensors
Technical Specifications of Left Door Hinge Magnetic Safety Sensors BNS 260-11/01ZG-ST-L 101184384:
| Working principle | Magnetic drive |
| Termination | Connector 8 mm, 6-pole, Latching interlocking |
| Degree of Protection | IP67 |
Schmersal Left Door Hinge Magnetic Safety Sensors, BNS 260-11/01ZG-ST-L, 101184384 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | Quasi Flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Actuating element | Magnet |
| Door hinge | Left |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Connector 8 mm, 6-pole, Latching interlocking |
| Length of sensor | 13 mm |
| Width of sensor | 26 mm |
| Height of sensor | 36 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 ยฐC |
| Storage and transport temperature | -25 ... +70 ยฐC |
| Resistance to vibrations | 10 โฆ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 75 VDC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Switching voltage, maximum | 24 VDC |
| Switching current, maximum | 0.01 A |
| Switching capacity, maximum | 0.24 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 32 g |
Request a Quote for Left Door Hinge Magnetic Safety Sensors BNS 260-11/01ZG-ST-L at Economical Prices
Get in touch for a customized quote on Left Door Hinge Magnetic Safety Sensors BNS 260-11/01ZG-ST-L (Part No: 101184384) at competitive rates.
Key Technical Features of BNS 260-11/01ZG-ST-L:
Magnetic Drive Principle
Housing: Durable Glass-fibre, reinforced thermoplastic for lasting performance
Actuating Element: Optimized Magnet for seamless operation with assured switching distances of 5 mm and 15 mm
Termination: Reliable 8 mm, 6-pole, Latching interlocking connector for secure installation
Electrical Ratings: Supports up to 24 VDC, 0.01 A, and switching frequency up to 5 Hz
Protection: IP67 rating for dust and water resistance
For the BNS 260-11/01ZG-ST-L datasheet, BNS 260-11/01ZG-ST-L pdf, and BNS 260-11/01ZG-ST-L price, request your quote now.
