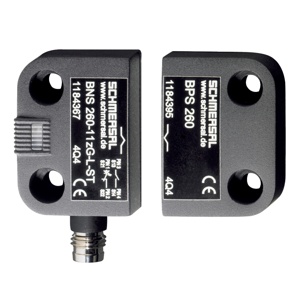

BNS 260-02Z-ST-R: 101184361 - Schmersal Right Door Hinge Safety Sensors
Technical Specifications of Right Door Hinge Safety Sensors BNS 260-02Z-ST-R 101184361:
| Working principle | Magnetic drive |
| Termination | Connector M8 |
| Degree of Protection | IP67 |
Schmersal Right Door Hinge Safety Sensors, BNS 260-02Z-ST-R, 101184361 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | Quasi Flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Number of safety contacts | 2 |
| Actuating element | Magnet |
| Door hinge | Right |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm |
| Assured switching distance "OFF" Sar | 15 mm |
| Termination | Connector M8 |
| Length of sensor | 13 mm |
| Width of sensor | 26 mm |
| Height of sensor | 36 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Rated insulation voltage Ui | 50 VAC |
| Rated impulse withstand voltage Uimp | 0.8 kV |
| Required rated short-circuit current | 100 A |
| Switching voltage, maximum | 75 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 VA |
| Switching element | 2 NC contact |
| Switching frequency, maximum | 5 Hz |
| Gross weight | 33 g |
Send Your Inquiry for Right Door Hinge Safety Sensors BNS 260-02Z-ST-R part no: 101184361 with cost-effective solutions. Essential Technical Specs of BNS 260-02Z-ST-R, 101184361 are Magnetic drive principle, encased in a robust Glass-fibre, reinforced thermoplastic housing, ensuring durability and reliability. The actuating element Magnet is optimized for seamless operation, with an assured switching distance of 5 mm and of 15 mm providing accurate and dependable performance. Equipped with a cable for flexible installation, the sensor features a reliable Connector M8 termination method, ensuring a secure connection. The sensors support a maximum switching voltage of 75 VDC and a current of 0.4 A capable of handling a switching frequency of up to 5 Hz. Rated with an IP67 degree of protection. Capture the Best Deal with a Quote for your requirement of Right Door Hinge Safety Sensors. Our pricing and support are designed to exceed the standards of other Traders & Suppliers.
