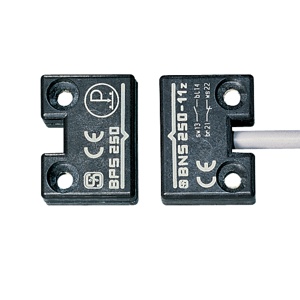

BNS 250-12ZG 2,0M: 101148396 - Schmersal Schmersal 3 W Magnetic Safety Sensors
Technical Specifications of Schmersal 3 W Magnetic Safety Sensors BNS 250-12ZG 2,0M 101148396:
| Working principle | Magnetic drive |
| Length of cable | 2 m |
| Termination | Cable |
| Degree of protection | IP67 |
Schmersal Schmersal 3 W Magnetic Safety Sensors, BNS 250-12ZG 2,0M, 101148396 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 2 |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm, 8 mm |
| Assured switching distance "OFF" Sar | 15 mm, 18 mm |
| Length of cable | 2 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.25 A |
| Switching capacity, maximum | 3 W |
| Switching element | 1 NO contact, 2 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 104 g |
Mail Us for your needs in Schmersal 3 W Magnetic Safety Sensors BNS 250-12ZG 2,0M part no: 101148396 with budget-friendly prices. The Main Technical Parameters of BNS 250-12ZG 2,0M, 101148396 inludce Glass-fibre, reinforced thermoplastic ensuring durability and reliability in demanding environments. The sensor operates on a Magnetic drive principle, utilizing a Magnet as the actuating element, providing precise operation. With an assured switching distance (Sao) of 5 mm, 8 mm and an assured switching distance (Sar) of 15 mm, 18 mm it guarantees accurate detection. The sensor comes with a durable 2 m for easy installation, and it supports a maximum switching current of 0.25 A with a switching frequency of up to 5 Hz making it ideal for fast-paced operations. It is rated IP67. Customize Your Experience with a Quote for your requirement of Schmersal 3 W Magnetic Safety Sensors. Experience the difference with our competitive pricing and superior support over other Suppliers.
