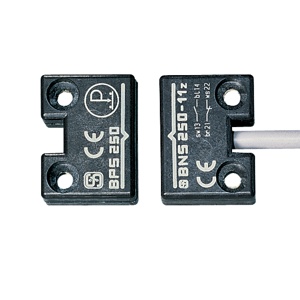

BNS 250-11Z 15,0M: 101142083 - Schmersal Schmersal 8 mm Sensing On Safety Sensors
Technical Specifications of Schmersal 8 mm Sensing On Safety Sensors BNS 250-11Z 15,0M 101142083:
| Working principle | Magnetic drive |
| Length of cable | 1 m |
| Termination | Cable |
| Degree of protection | IP67 |
Schmersal Schmersal 8 mm Sensing On Safety Sensors, BNS 250-11Z 15,0M, 101142083 Technical Specifications:
| Specification | Value |
|---|---|
| Working principle | Magnetic drive |
| Installation conditions (mechanical) | not flush |
| Housing material | Glass-fibre, reinforced thermoplastic |
| Number of normally closed (NC) | 1 |
| Active area | lateral |
| Actuating element | Magnet |
| Direction of motion | Head-on to the active surface |
| Assured switching distance "ON" Sao | 5 mm, 8 mm |
| Assured switching distance "OFF" Sar | 15 mm, 18 mm |
| Length of cable | 1 m |
| Termination | Cable |
| Wire cross-section | 23 AWG |
| Material of the Cable mantle | PVC |
| Length of sensor | 13 mm |
| Width of sensor | 88 mm |
| Height of sensor | 25 mm |
| Degree of protection | IP67 |
| Ambient temperature | -25 ... +70 Β°C |
| Storage and transport temperature | -25 ... +70 Β°C |
| Resistance to vibrations | 10 β¦ 55 Hz, amplitude 1 mm |
| Restistance to shock | 30 g / 11 ms |
| Switching voltage, maximum | 100 VDC |
| Switching current, maximum | 0.4 A |
| Switching capacity, maximum | 10 W |
| Switching element | 1 NO contact, 1 NC contacts |
| Switching frequency, maximum | 5 Hz |
| Design of control elements | Miscellaneous, Reed contacts |
| Gross weight | 72 g |
Ask for the Pricing of Schmersal 8 mm Sensing On Safety Sensors BNS 250-11Z 15,0M part no: 101142083 at unbeatable prices. Detailed Specifications of BNS 250-11Z 15,0M, 101142083 feature Glass-fibre, reinforced thermoplastic ensuring durability and reliability in demanding environments. The sensor operates on a Magnetic drive principle, utilizing a Magnet as the actuating element, providing precise operation. With an assured switching distance (Sao) of 5 mm, 8 mm and an assured switching distance (Sar) of 15 mm, 18 mm it guarantees accurate detection. The sensor comes with a durable 1 m for easy installation, and it supports a maximum switching current of 0.4 A with a switching frequency of up to 5 Hz making it ideal for fast-paced operations. It is rated IP67. Now's the Time to Secure a Quote for your requirement of Schmersal 8 mm Sensing On Safety Sensors. We're committed to offering more favorable pricing and more responsive support than other Traders.
